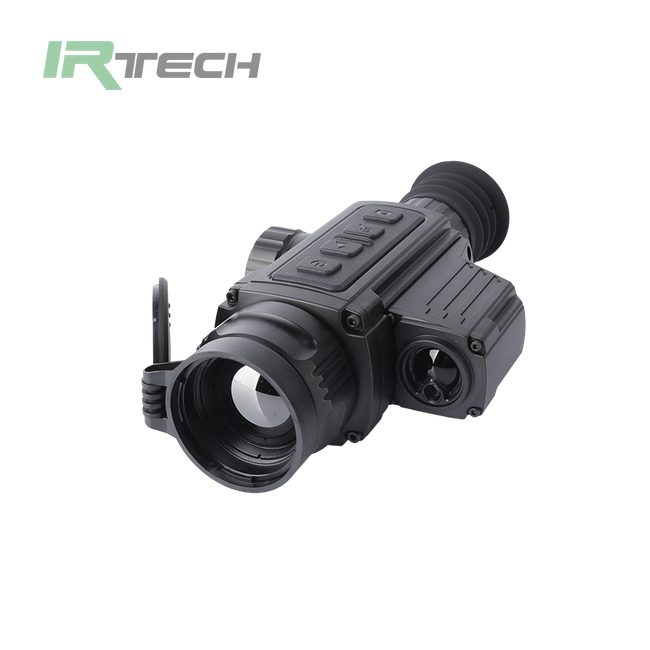

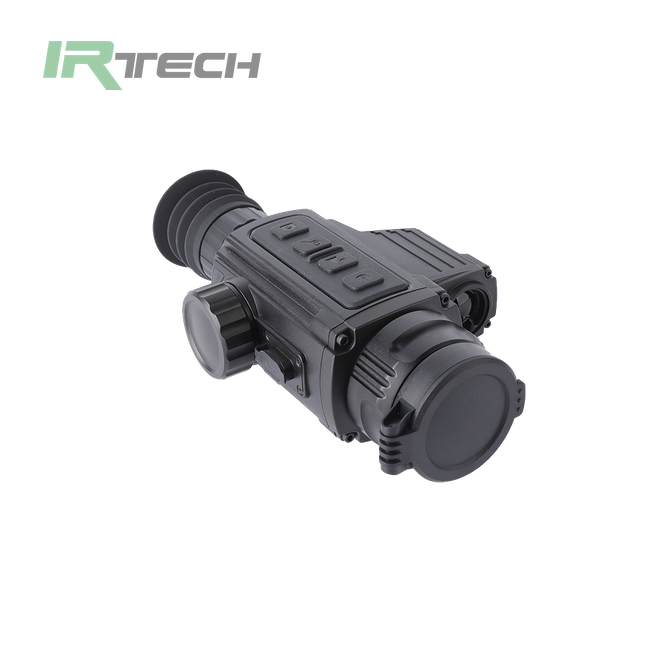

IRtech-RS5 Series Thermal Scope
◆OLED (1440*1080), a High-performance display.
◆1000m accurate laser distance measurement.
◆Equipped with electronic compass and motion sensors.
◆Compact and lightweight, easy to carry around.
|
Items |
Technical parameter |
|||
|
RS519-384L |
RS535-384L |
RS535-640L |
RS550-640L |
|
|
Detector |
||||
|
Type |
VOx |
|||
|
Pixel |
384x288 |
640x512 |
||
|
Pixel spacing |
12um |
|||
|
Wavelength range |
8～14um |
|||
|
NETD |
≤35mk |
|||
|
IR lens |
||||
|
Focus |
19mm/F1.0 |
35mm/F1.0 |
35mm/F1.0 |
50mm/F1.0 |
|
FOV |
13.8°x10.4° |
7.5°x5.7° |
12.5°x10.0° |
8.8°x7.0° |
|
Focusing method |
Manual |
|||
|
Monitor |
OLED，0.39", 1440x1080 |
|||
|
Image display |
||||
|
Eyepiece Parameter |
40mm |
|||
|
Magnification |
1.77x~7.08x |
3.26x~13.04x |
1.91x~7.64x |
2.72x~10.88x |
|
Diopter Adjustment |
-5D~+5D |
|||
|
Laser rangefinder |
can be extended (optional), ranging from 10 to 1000m |
|||
|
Electronic compass/ motion sensor |
support |
|||
|
Wi-Fi |
support |
|||
|
Image performance |
||||
|
Frame Rate |
50Hz |
|||
|
Image Correction |
auto/manual |
|||
|
E-zoom |
,2x.4x |
|||
|
Hot spot tracking |
support |
|||
|
Cross Reticle |
support |
|||
|
Palette |
White heat, black heat, iron red, red heat, forests. |
|||
|
Image transmission |
WiFi real-time image transmission, photography, and video. |
|||
|
Image storage |
||||
|
Memory |
32GB |
|||
|
Photos |
support |
|||
|
Video |
support |
|||
|
Power system |
||||
|
Battery Type |
Single standard 26500 rechargeable lithium battery, replaceable. |
|||
|
Battery working time |
>5h |
|||
|
Charging method |
Support online charging |
|||
|
External power supply |
DC5V/2A |
|||
|
Interface |
||||
|
Data interface |
Type-C |
|||
|
Installation interface |
Three standard fixing screw holes, and different optional mounting brackets |
|||
|
Physical characteristic |
||||
|
Dimension（mm） |
≤165*110*65mm |
≤190*110*65mm |
≤190*110*65mm |
≤200*110*65mm |
|
Weight（g) |
≤532g |
≤582g |
≤587g |
≤632 |
|
Environment parameter |
||||
|
Working temperature |
-30℃~ +55℃（-22°F ~ 131°F） |
|||
|
Storage temperature |
-40℃~ +70℃ |
|||
|
Max. Recoil Power |
800g/ms |
|||
|
Protection class |
IP6X |
|||
|
Detection distance |
||||
|
Human(1.8×0.5)m |
750m |
1400m |
1400m |
1900m |
|
Car(2.3×2.3)m |
1800m |
2200m |
2200m |
3200m |
|
Recognition distance |
||||
|
Human(1.8×0.5)m |
376m |
700m |
700m |
1000m |
|
Car(2.3×2.3)m |
910m |
1100m |
1100m |
1600m |
-
