EX-VI Thermal Camera

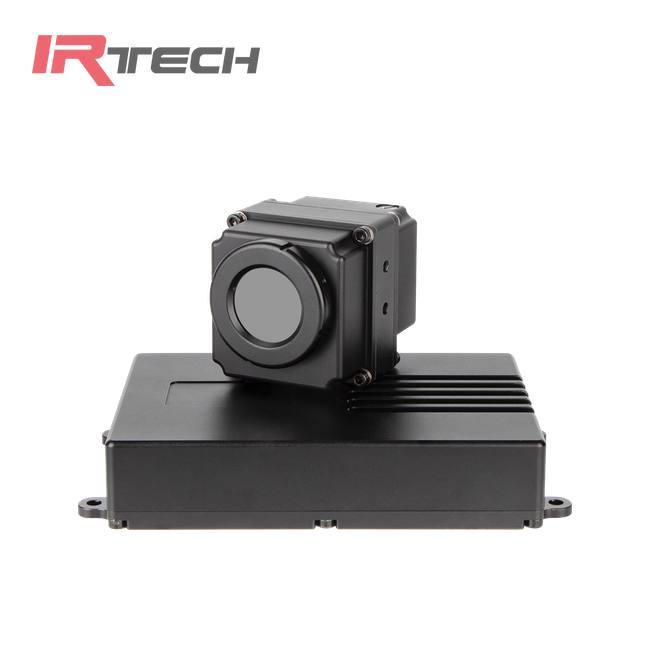

The EX-VI in-car thermal imaging system is an intelligent assistance system for night-time driving, identifying vehicles and pedestrians in front of you and providing alerts, regardless of the time of day or night, to improve overall driving safety.

Item

Technical Parameter

EX-VI-384

EX-VI-640

Detector

Type

Uncooled FPA

Uncooled FPA

Resolution

384×288

640×512

Spectral range

17um

NETD

≤ 40mK

Focal length

13mm

19mm

FOV

28°×21° ±5%

32°×24.2° ±5%

Image performance

Palette

White heat, black heat (green red, red heat) etc.

Image adjustment

Automatic brightness and contrast adjustment

Image enhancement

Automatic

Image output

GMSL and PAL

Image magnification

2x Electronic magnification

Frame rate

30Hz

Power

External power

DC  12V

Consumption

≤5W≤9W Heating defrost

Reverse polarity protection

With power reverse and over-voltage protection

Environment

Working temp

-40-+85

Storage temp

-40- +90

Protection Class

IP69K Thermal Module/

IP52Control module

Physical parameters

Weight

Thermal Module ≤ 230g   /

Control module ≤ 370g

Size

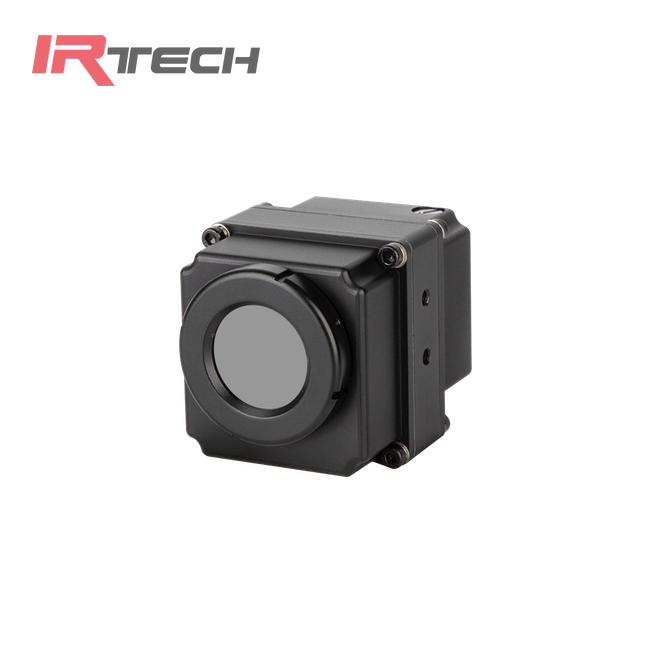

Thermal Module ≤ 68×51×58mm   /

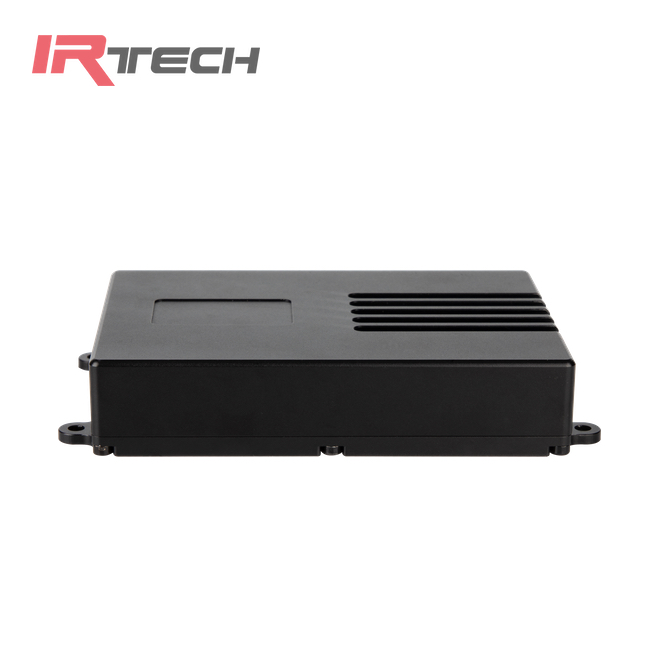

Control moduleECU ≤ 150×103×28mm

Smart Assist

Heating function

≤ 2±1 Turn on the heating function   /

≥ 7±1 Turn off the heating function

Self-detection function

With power-on self-test and fault detection function, and send fault information to the instrument to light up the indicator

Early warning function

With driving detection warning

Others

Power-on response

≤ 10s

Exterior colours

Black and Aluminium primary colours

Lens protection

High-strength glass
