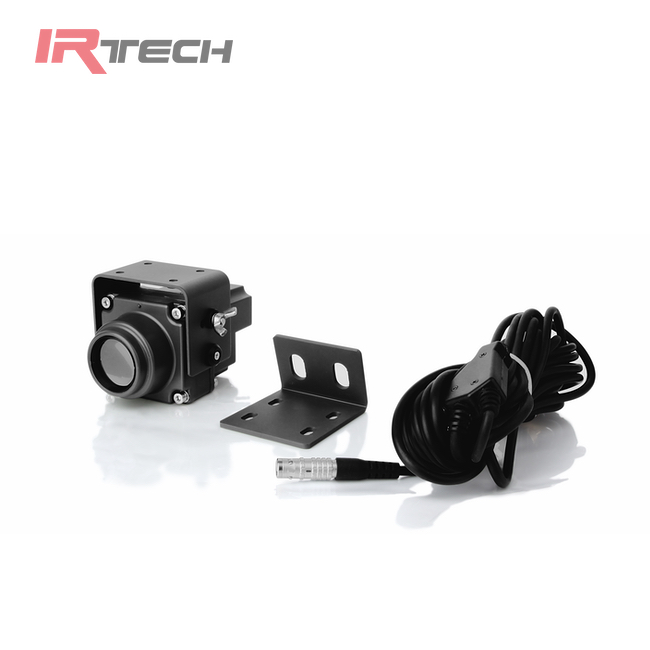

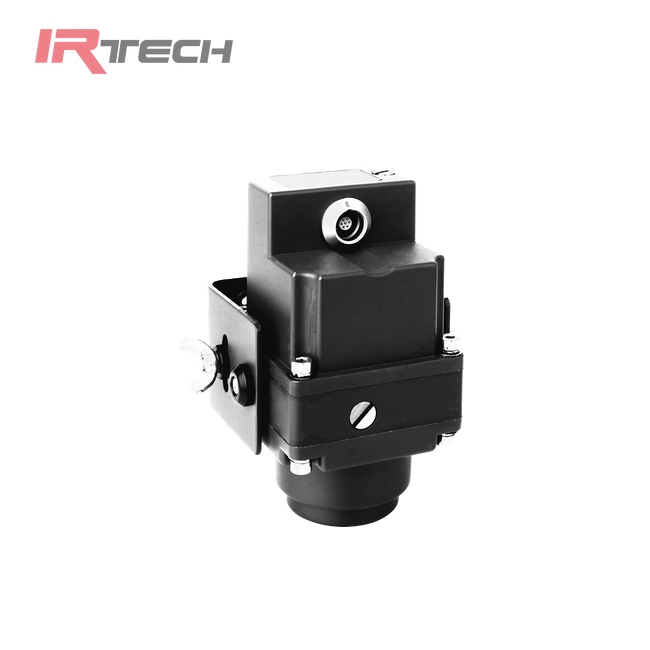

EX-25N Thermal Camera
EX-25N vehicle-mounted thermal imaging night driving camera adopts an uncooled microbolometer sensor developed independently by DALI. It can output images stably under the environment temperature and can meet the military standard.
The product is designed according to national vehicle industry-standard QC/T413. The manufacturing process is controlled according to ISO/TS16949
The product is designed according to national vehicle industry-standard QC/T413. The manufacturing process is controlled according to ISO/TS16949
|
Item |
Technical Parameter |
|
|
EX-25N |
||
|
Detector |
Type |
Uncooled FPA |
|
Resolution |
384×288 |
|
|
FOV |
37.9°×28.5° |
|
|
Focus |
Fixed athermalized lens |
|
|
Frame rate |
50Hz |
|
|
Focal length |
Fixed ( ≥6m ) |
|
|
Spectral range |
8-14μm |
|
|
Calibration |
Auto |
|
|
System |
Startup time |
Image output time≤10s@30℃ |
|
Power |
External power |
DC 12~32V |
|
Consumption |
<6W |
|
|
Reverse polarity protection |
With power reverse and over-voltage protection |
|
|
Environment |
Working temp |
-41℃-+65℃ |
|
Storage temp |
-55℃- +85℃ |
|
|
Humidity |
≥6500 h under salt spray conditions at +25°C, Relative humidity of 81% |
|
|
Protection Class |
IP67 |
|
|
Shock resistance |
GJB150A-2009 |
|
|
Vibration resistance |
GJB150A-2009 |
|
|
Electromagnetic compatibility |
GJB151A |
|
|
Physical parameters |
Weight |
<700g |
|
Size |
<64×64×115mm (w/o brackets, external cables) |
|
|
Interface |
Power port |
Yes |
|
Video output |
PAL |
|
-
