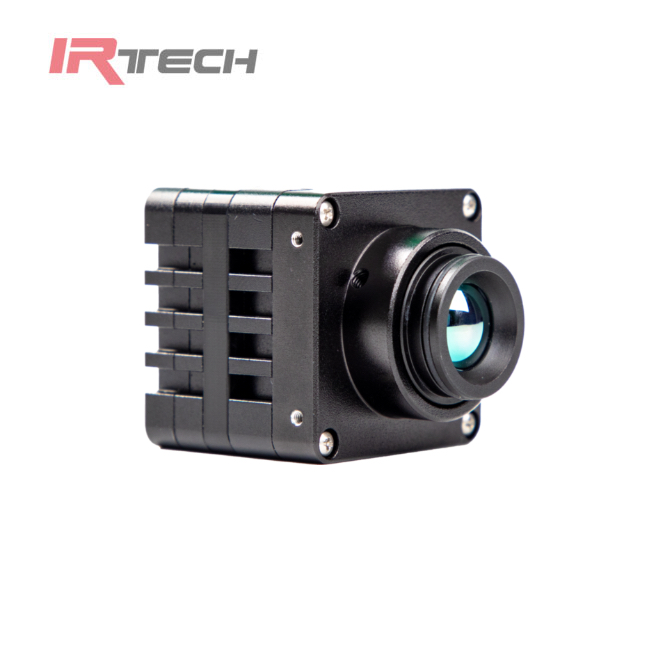

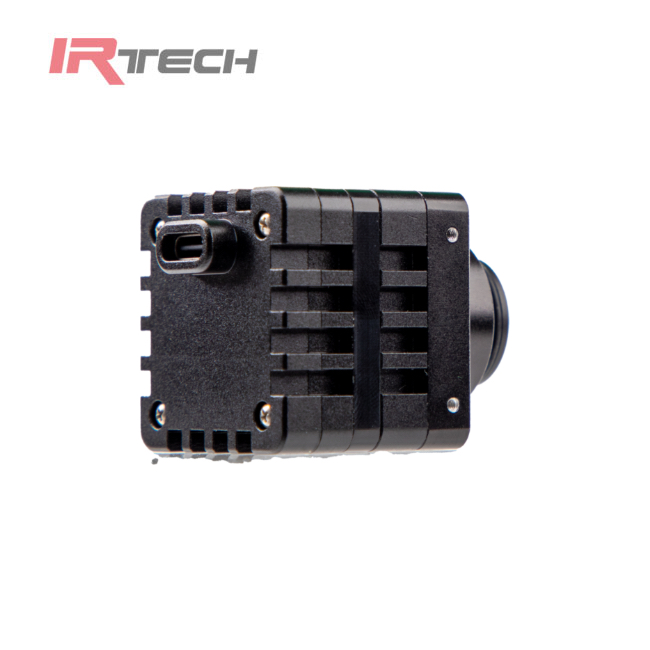

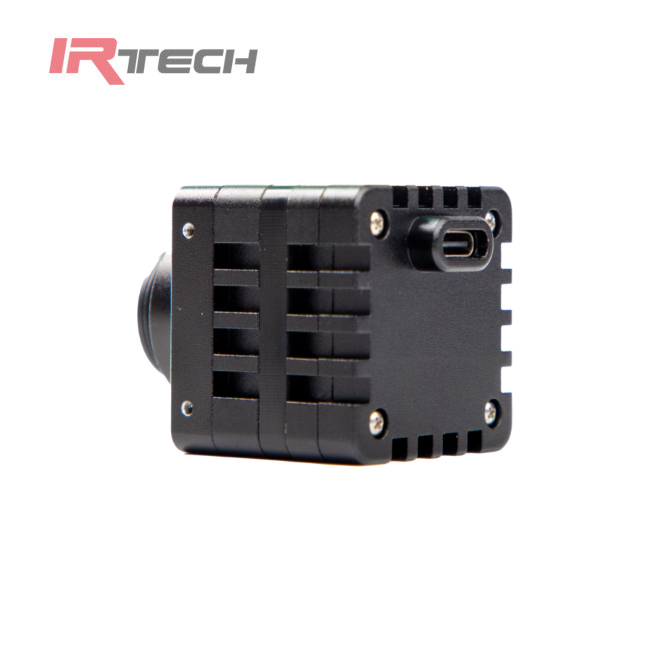

ZOOM Gen2 Mini Module
Resolution160*120
Frame rate<15Hz
Temperature measurement range-10℃~300℃
Temperature measurement accuracy ±2℃ or ±2% of reading
Optional multiple lenses and FOV
Mini size W20mm*H20mm
High-speed serial port, SPI, USB output interface
ZOOM Gen2 |
Technical Parameter |
||
TD16A-2 |
TD16A-3 |
TD16A-6 |
|
|
Detector |
||
Detector type |
Uncooled infrared focal plane detector |
||
Resolution |
160×120 |
||
Pixel spacing |
17um |
||
wavelength range |
8um~14um |
||
NETD |
≤60mK |
||
|
Video & Interface |
||
Frame rate |
25Hz |
||
Image correction |
Dynamic correction to dead point and complete replacement of single point, two points before leaving the factory |
||
pseudo |
Provided by DEMO |
||
E-zoom |
Provided by DEMO |
||
Output interface |
12 M high-speed serial port/SPI interface/UVC interface configurable |
||
Control interface |
RS232(3.3V, high-speed serial port, SPI interface),UVC |
||
|
Temp. measurement |
||
Measurement range |
-10℃~+300℃ |
||
Temp. measurement accuracy |
±2℃ or ±2% of reading |
||
Temp. measurement correction |
Temperature measurement distance & emissivity adjustable |
||
Temp. measurement method |
Full-scale temperature measurement |
||
Temp. measurement data output |
Output 160×120 temperature data per frame |
||
|
Power |
||
Working voltage |
DC 5V±0.5V |
||
Consumption |
≤0.5W |
||
|
Environmental adaptability |
||
Working temp. |
-15℃~+50℃ |
||
Storage temp. |
-40℃~+70℃ |
||
|
Dimensions and assembly |
||
Standard lens |
f2.5mm/F1.2 |
f3.85mm/F1.0 |
f6.0mm/F1.1 |
FOV |
62°× 46° |
40°× 30° |
26°× 19° |
Dimension |
W20mm×H20mm×D21mm(without lens) |
||
Installation method |
Install through four φ1.8mm through holes on the structure |
||
|
Others |
||
PC demo adapter board |
Option a USB adapter board to connect to the computer to demonstrate image, temperature measurement and others |
||
PC software interface |
Provide PC software interface to quickly view images, temperature measurement, etc. |
||
User DEMO |
Provide DEMO corresponding to Window, Linux, Android |
||
User second calibration |
Open the user's secondary temperature measurement calibration interface, and provide secondary calibration solutions |
