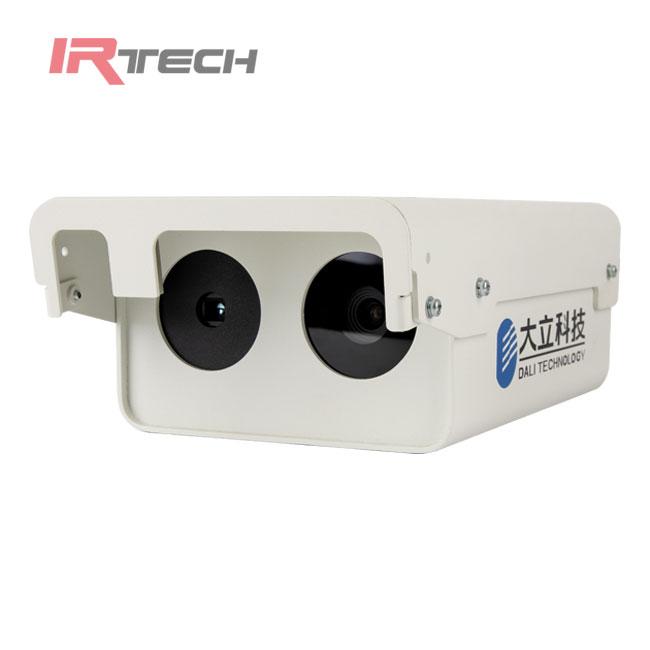

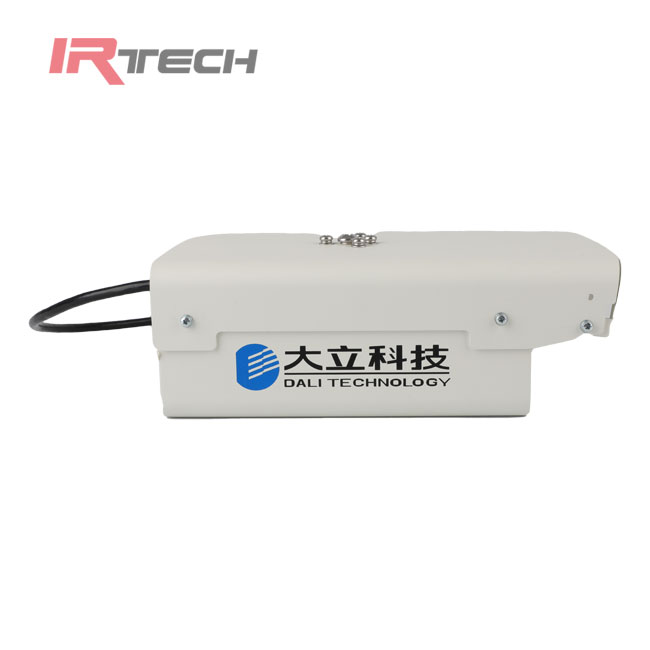

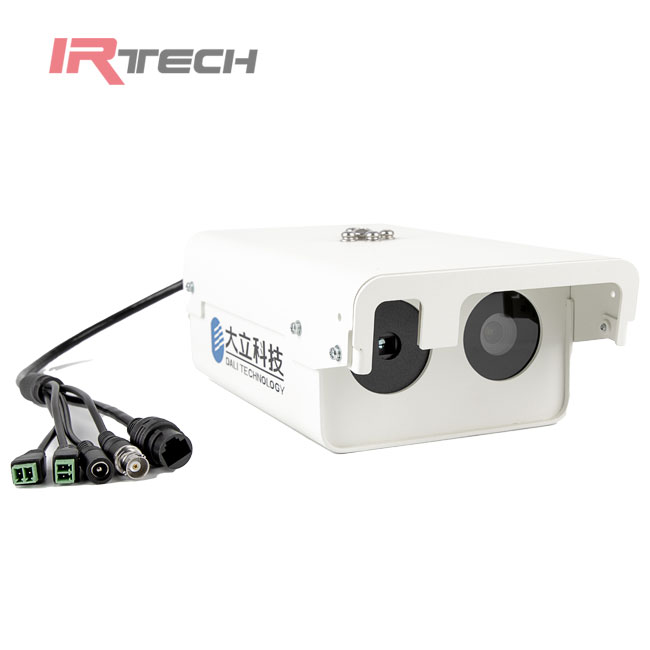

DM60-WS1 Plus Thermal Imaging System
DM60-WS1 PLUS thermal imaging body temperature warning system is composed of a thermal imaging camera, an HD visible light camera, and a precision built-in black body.
Suitable for early warning of rapid temperature screening at entrances and exits in commercial complexes, stations, schools, hospitals, communities, and scenic spots.
|
Item |
DM60-WS1 Plus |
|
|
Thermal detector |
Detector type |
Uncooled FPA |
|
Spectrum range |
8 - 14 µm |
|
|
resolution |
160×120 |
|
|
NETD |
≤60mk |
|
|
Thermal lens |
FOV |
40°× 30° |
|
Focal length |
3.85mm |
|
|
Functions |
Measuring range |
20℃～50℃ |
|
Measurement accuracy |
≤±0.3℃ |
|
|
Alarm response time |
＜1s |
|
|
Color |
11 kinds of color |
|
|
Temperature correction |
Full automatic temperature correction with built-in black body |
|
|
Distance |
1~3m |
|
|
Alarm function |
Alarm mode |
Body surface mode, armpit mode |
|
Alarm quantity |
Above 10 |
|
|
Intelligent function |
Face detection |
|
|
Alarm trigger |
Voice mode |
|
|
Visual light camera |
Resolution |
1920*1080 |
|
Sensor |
200M CMOS Starlight ultra-low illumination camera |
|
|
Functions |
Auto gain white balance |
|
|
Environmental adaptability |
Working temperature |
0℃-- +40℃ |
|
Storage temperature |
-40℃-- +60℃ |
|
|
Physical characteristics |
Voltage |
DC 12V |
|
Consumption |
≤10W |
|
|
Network port |
RJ45 |
|
|
Weight |
<1.5KG |
|
|
Dimension |
250*145*85mm |
|
|
Working environment |
Indoor |
|
-
