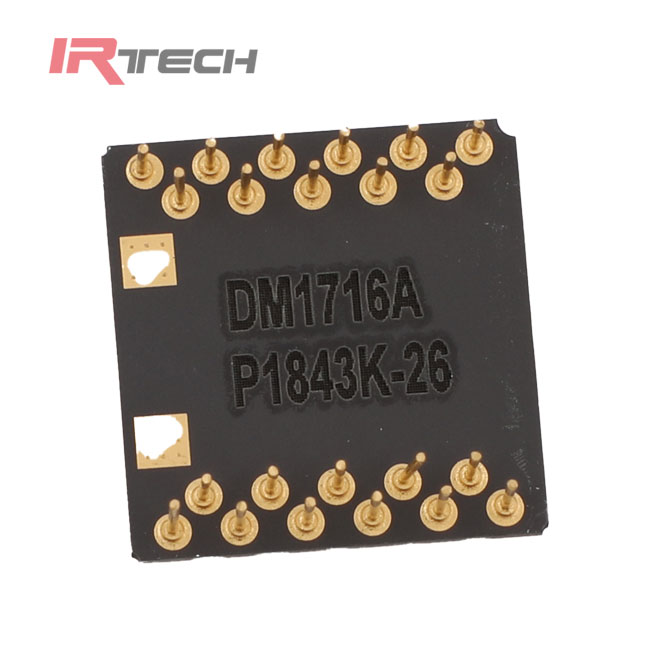

DM series a-Si detector

The Uncooled Microbolometer infrared FPA detector researched
and developed by Dali has already been applied in industrial
production. It has the advantages of high resolution, high
sensitivity, low thermal noise and fast response.

Items

DM1716A

DM1724A

DM1738A

DW1716D

DM2516A

Detector Type

a-Si

a-Si

a-Si

a-Si

a-Si

Array size

160×120

240×180

384×288

160×120

160×120

Pixel pitch

17um

17um

17um

17um

25um

Spectral response

8μm14μm

8μm14μm

8μm14μm

8μm14μm

8μm14μm

Frame rate

≤60Hz

≤60Hz

≤60Hz

≤60Hz

≤60Hz

NETD(f/1,300K,50Hz)

60mK

60mK

60mK

60mK

60mK

Operability

≥99.5%

≥99.5%

≥99.5%

≥99.5%

≥99.5%

Consumption(Typ) without TEC

70mW

90mW

100mW

80mW

100mW

Dimension(mm)pins excluded

16 × 16 × 3.8mm

16 × 16 × 3.8mm

16 × 16 × 3.8mm

7.1 × 8.7 × 1.4mm

16 × 16 × 3.79mm

Weight

≤3g

≤3g

≤3g

≤1g

≤3g

Operating temperature

-40+85

-40+85

-40+85

-40+70

-40+85

Storage temperature

-40+85

-40+85

-40+85

-40+85

-40+85

Component packaging mode

ceramic

ceramic

ceramic

wafer

ceramic
