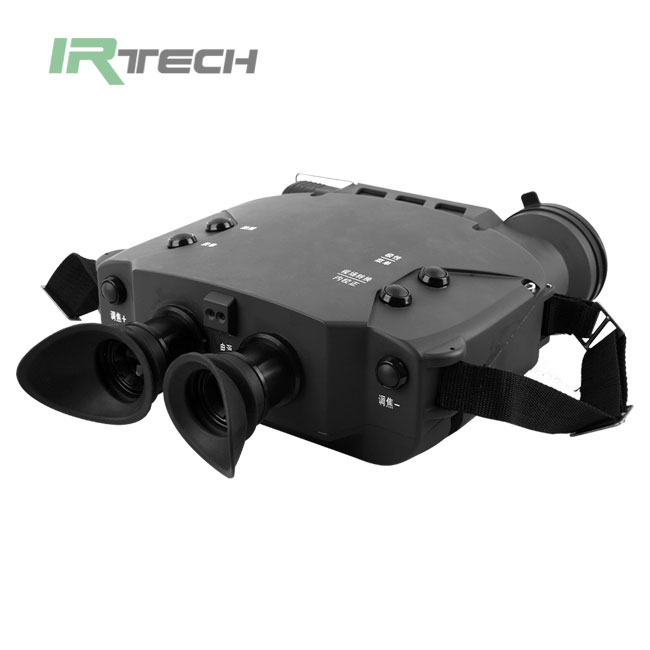

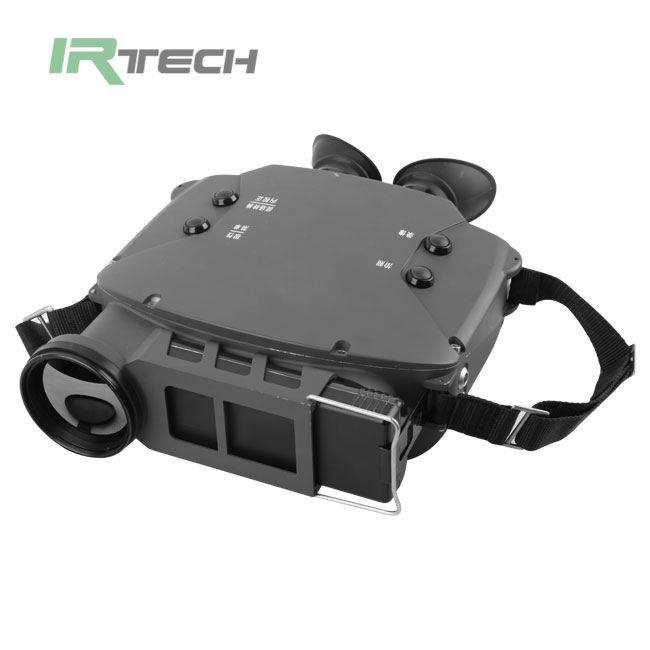

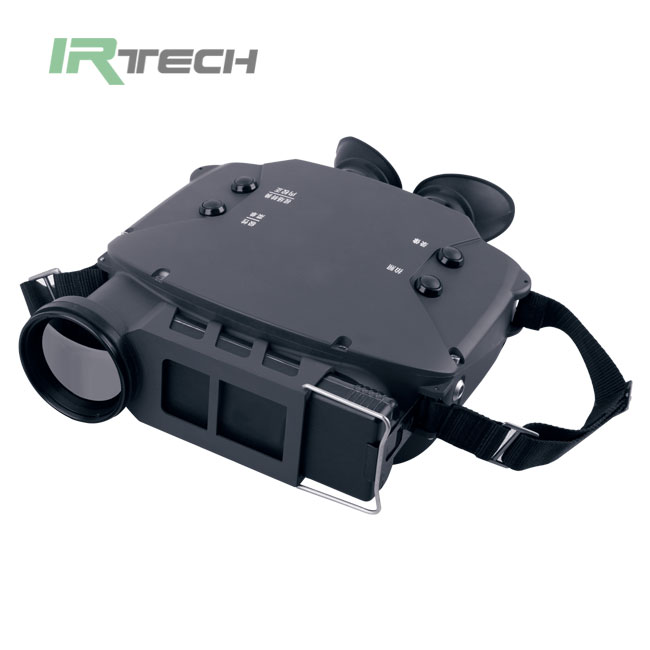

S930H Cooled Thermal Binoculars

Item

Specs

Detector

Type

MCT Cooled

Spectral range

3 ~ 5 µm

Resolution

320×256

640×480

Pixel Pitch

30µm

Performance

NETD

≤30mk@25℃

MRTD

≤0.35℃( @f0)

Lens

Focal Length

30~240mm Optical Continuous Zoom

F

4

FOV

2.3° ×1.8° ~ 23° ×18° (±5%)

Image & Storage Function

Gain / Brightness

Manual / Auto

Calibration

Automatically Cal at startup

Manually Cal during operation

Enhancement

Yes

Image Filtering

Yes

Polarity

Black-hot / White-hot

Focus

Motorized Focusing

Internal Storage

Type

Built-in memory card

  8GB (up to 32GB optional)

File Type

Image & Video

Format

JPG & AVI

Storage

Image ≥ 1000

Video ≥ 2 h

Display

Display mode

Binocular OLED display, resolution 800*600

Eyepiece diopter

-4 ~ +4

Information processing unit parameters

Positioning system

GPS

Accuracy (RMS)

Lng & Lat : 5m

elevation: 10m

DMC

Horizontal range: 360°

  Pitching: ±40°

Angle accuracy (RMS)

Azimuth: 0.6°

pitch angle: 0.3°

Laser ranging finder

Laser Band

1.55 µm (Safe for eyes)

Ranging

50m~8Km

Accuracy

≤2m

(Target > 50m)

Accurate probability

≥96%

Frequency

10 times/min

RMS

≤30m(@8Km)

Visible​​​​​​​ camera​​​​​​​

Sensor

1/3”HAD CCD

Resolution

795×596

Minimum illumination

0.05 Lux

Resolution

600 TVL

Focal Length

f=100mm,F=2.6

FOV

2.85°×2.13°（±5%）

Environment

Working Temp

-30℃～55℃

Storage Temp

-40℃～65℃

Protection class

IP67

Power

Type

Rechargeable Li-ion Battery

Working time

> 4 hours (@25℃)

Physical  parameters

Weight

≤4Kg

Dimension

278×250× 110mm

External Power

Yes

Video output

PAL

Date transmission

USB

Communication

RS232

Tripod Interface

3/4"-20-UNC

Detection​​​​​​​ distance​​​​​​​

Human（1.7*0.5）m

6600m

Car（2.3*2.3）m

9000m

Recognition distance

Human（1.7*0.5）m

2200m

Car（2.3*2.3）m

3000m
