DLSC-Y Series Thermal Imaging System

DLSC-Y mobile online series is real-time temperature monitoring system integrating visible light(optional), infrared thermal imaging and embedded processing technology.

Infrared  Camera

DM66-37

(Water Proof Cover)

FOV/Min Focal Length

25°×19°/0.3m

Spatial resolution

0.65mrad

Type

Uncooled FPA

Spectral Range

7.5-14μm

NETD

≤0.06℃@30℃

Frame Rate

50Hz Analyzable heat map data output

Zoom

Electrical / Automatic

Temp Range

-20 ℃~+650 ℃, optional up to  1200℃

Accuracy

±2℃ or ±2% of reading (whichever is greater)

Mode

Auto

Atmospheric transmittance correction

Auto

Emissivity correction

Auto

Optical correction

Auto

Method

Continuous & Dynamic

Working Temp

-15℃~ +50℃

Storage Temp

-40℃~70℃

Protection Class

IP66



Tripod

Gitzo GT2542

(3 long nails)

Bearing

18KG

Closed length

56cm

Max Height

167cm

Max Height (Axis lay down)

139cm

Min Height

15cm

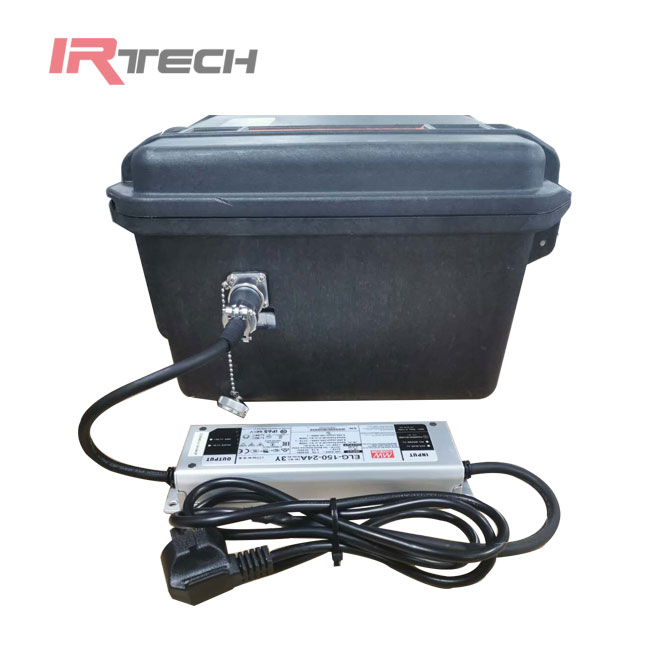

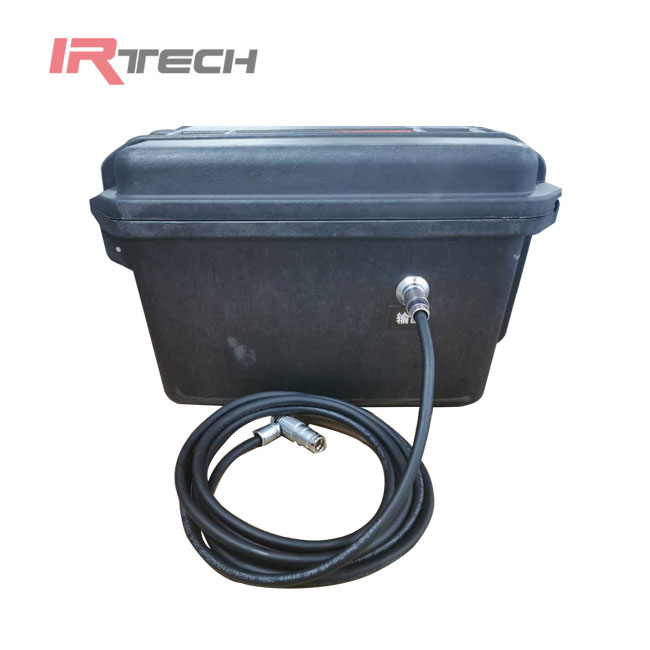

Main Control Box

Computer

Customized touch screen

Communication module

4G

Power

AC220V / DC12V Aviation plug

Protection class

IP66



Basic analysis function

Spot (cross point display, Multipoint measurement);

Linear analysis (Multi-line measurement));

Regional analysis (Multi-region measurement, Free to move and resize)

Adjustment function

Automatically adjust image gain and brightness/contrast;

Electric Focusing: Auto/Manual

Basic setting function

High temperature alarm; high and low temperature capture; isothermal analysis;

Pseudo-color function: setting function of emissivity, distance, ambient temperature, relative humidity and other parameters; freeze/activate function: image electronic zoom function

Smart alarm function

Set alarm temperature value, the system will automatically send message to mobile phone

Professional infrared analysis software

Multiple  trend analysis

Automatic generation of dynamic infrared data lists, dynamic time-temperature curves, dynamic straight-to-temperature curves

Load data correlation function

The power equipment load value that can be marked at any moment is related to the trend curve

Multi-analysis window display

Multiple object analysis windows can be displayed at the same time and switched quickly for easy comparison of different images

File interception recording

A section of an intercepted file is rerecorded as a file

Report generated automatically

Automatically generate reports based on analysis templates that have multiple analysis templates

Key frame quick recall

Quickly retrieve key frames for any part of interest in the trend curve

Data Extraction

Get infrared image or analysis object contains temperature data copied to excel

Time temperature trend analysis

The trend curve of the maximum temperature, average temperature, and minimum temperature can be obtained to understand the temperature change of the entire load cycle

Multiple analysis curves are displayed in the same coordinate system

Can compare the temperature difference between the concerned part and the normal part to judge the defect

Straight line temperature trend curve

The trend curve of the temperature in the straight line range as the load or operating condition changes
