DALI-IRtech    OUTDOOR    MONOCULARS    IRtech-S25X Series Thermal Monocular

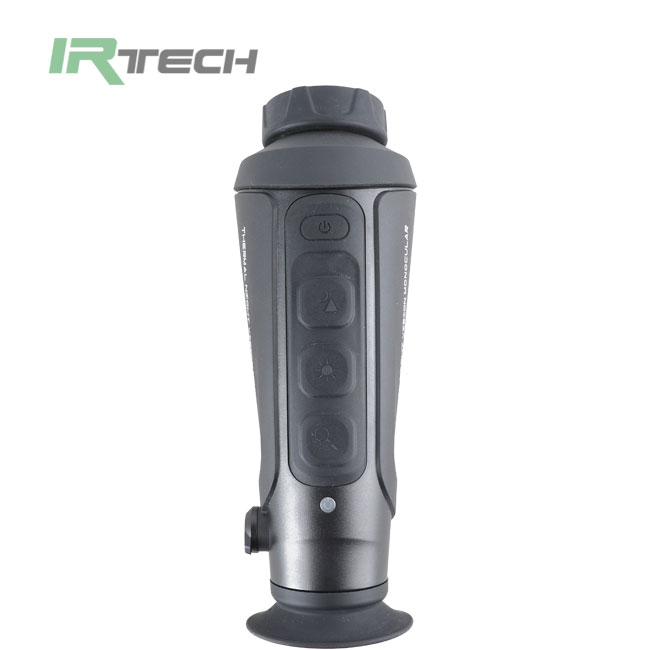

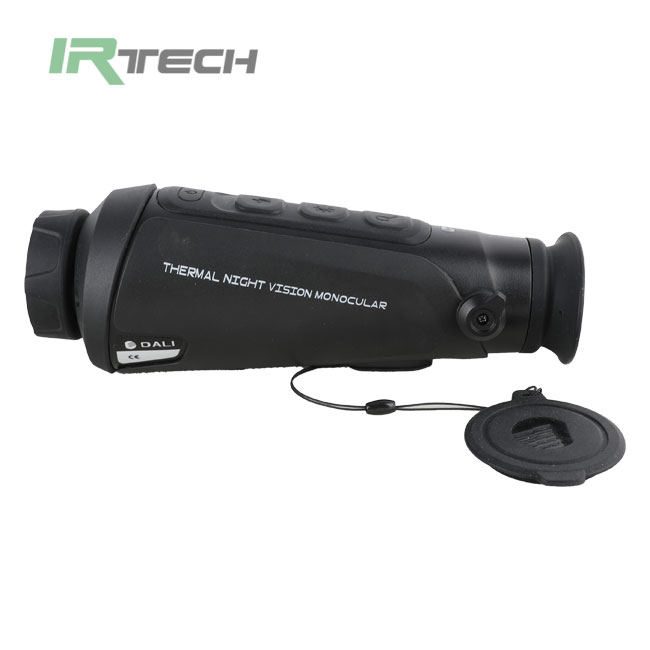

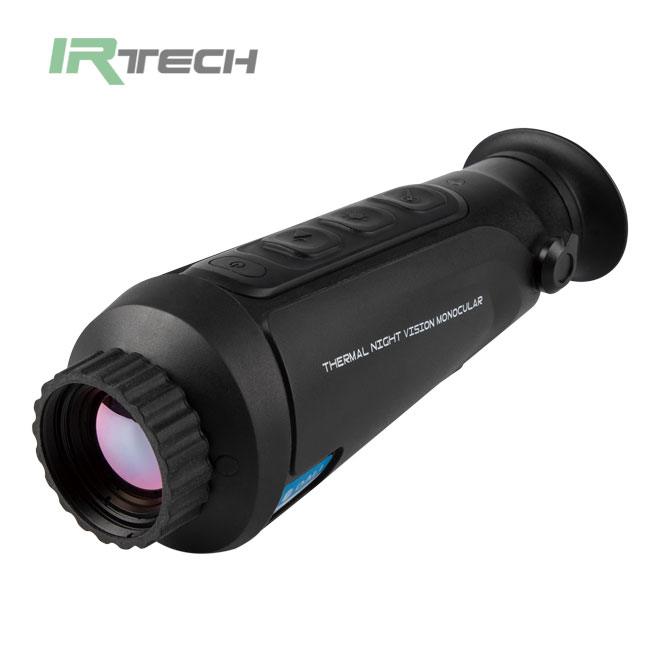

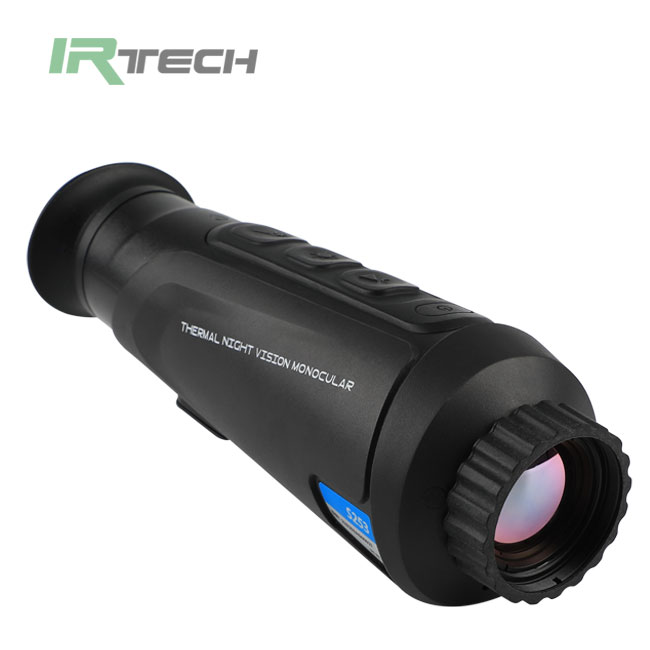

IRtech-S25X Series Thermal Monocular

Small volume, can be used with one hand
OLED 1440*1080 large size display screen, more clear display and observation
With WiFi, support image transmission function, real-time browsing, recording, photograph, playback and control etc via mobile APP
Support hot spot tracking, picture-in-picture, cross cursor, various color palletes, distance estimate function etc.

Item

S252

S252H

S253

S253H

S256

Detector

Detector type

Uncooled FPA

Resolution

256×192

256×192

384×288

384×288

640×480

Pixel pitch

12μm

12μm

17μm

17μm

17μm


FOV

17.9*13.2°

11.7*8.8°

14°*10.5°

10.7°*8.0°

17.7°*13.3°

Focal length

10mm

15mm

25mm

35mm

35mm

Magnification

1.4x

2.0x

1.64x

2.3x

1.38x

NETD

40mk@30

Frame rate

25HZ

25HZ

50HZ

50HZ

50HZ

Focus

Fixed focus lens

Manual focus lens

Digital zoom

2X4X

Picture-in-Picture

Yes

Distance estimate

Yes

Image transmission

WiFi image transmission, support real-time browsing, photograph, video recording functions etc.

Cross cursor

Yes

Hot spot tracking

Yes

Laser indication

Yes

Photo and video

Yes

Image display

Display

OLED 1440*1080 (Eyepiece adjustable)

Image polarity

Black-hot, White-hot, Red-hot, Enhanced mode

Diopter Adjustment

-5D~+5D

Power supply

Battery type

Li-Ion battery, Rechargeable

Operation time

5.5 hours continuous

4 hours continuous

Charging

USB charging and power bank support

External power

DC5V/2AType-c USB

Environment

Working temp.

-20- +50

Storage temp.

-40- +60

Protection class

IP66

Drop resistance

1 M

Physical characteristics

Weight

≤0.39kg

≤0.46kg

Dimension

185*71*71mm

200*71*71mm

Storage

Build-in32GB

Power interface

Yes

Video output

PAL

USB

External charging

Data Transfer

Connectable to PC for data copy and product upgrade

Tripod interface

1/4"-20-UNC

Detection distance

Human 1.8*0.5m

395m

570m

700m

1000m

1000m

Car 2.3*2.3m

640m

925m

1100m

1500m

1500m

Recognition distance

Human 1.8*0.5m

200m

285m

350m

500m

500m

Car 2.3*2.3m

320m

460m

560m

790m

790m
