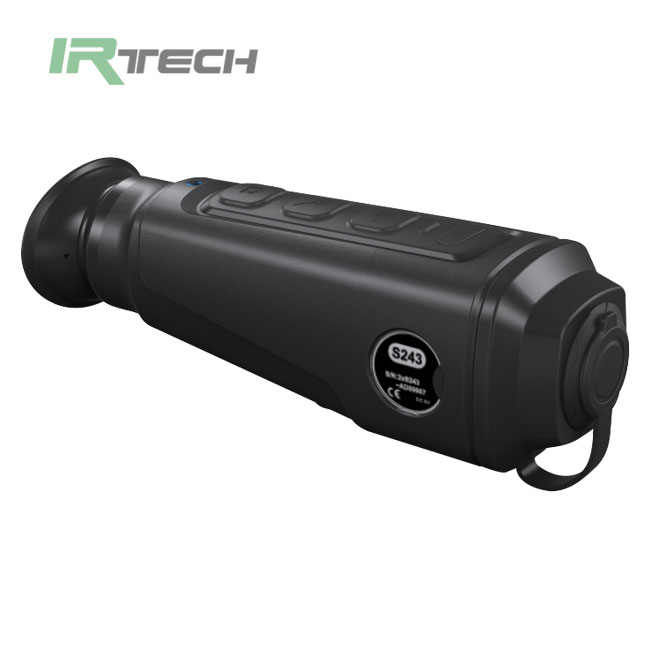

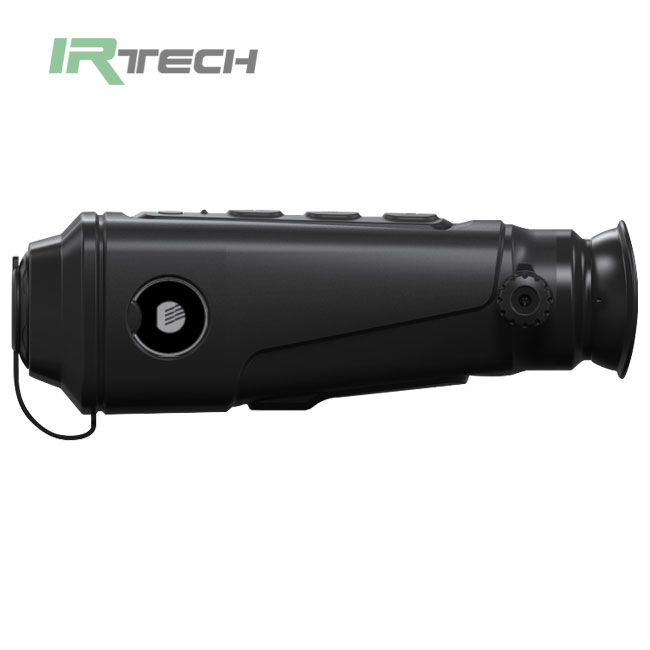

S243W（NEW）Thermal Monocular
Support photographing and video, Protection level IP66, 1-meter drop resistance; Built-in multiple infrared color codes and cross cursor; Type-C fast charging.
|
Item |
S243W |
|
Detector |
|
|
Type |
VOx /12μm |
|
Resolution |
384×288 |
|
NETD |
≤ 35mk |
|
Image |
|
|
FOV |
17.6°x13.2°（±5%） |
|
Focal length |
15mm |
|
Frame rate |
50HZ |
|
Focus |
Fixed lens |
|
Digital zoom |
1.0~4.0X |
|
Spectral range |
8~14μm |
|
Image transmission |
With wifi real-time image transmission |
|
Crosshair cursor |
yes |
|
Recording |
Photo and video |
|
Storage |
Build-in，32GB |
|
Hot-spot tracking |
yes |
|
Laser indicator |
yes |
|
Display |
|
|
Display |
Color screen 800 x 600 |
|
Palette |
Black hot, white hot, red hot and Pseudo-color |
|
Diopter adjustment |
Adjust by knob |
|
Power |
|
|
Battery |
Li-ion rechargeable |
|
Working time |
10 hours continuous |
|
Charging |
Support USB charging and power bank |
|
External power |
DC5V/2A（type-c） |
|
Environment |
|
|
Operating temp. |
-20℃~ +50℃ |
|
Storage temp. |
-40℃~ +60℃ |
|
Protection class |
IP66 |
|
Drop resistance |
1 M |
|
Physical |
|
|
Weight |
<330g |
|
Dimension |
<185*60*60mm |
|
Interface |
|
|
Power interface |
Type-C for external charging |
|
Video output |
PAL |
|
Detection distance |
|
|
Human（1.8×0.5）m |
1000m |
|
Car（2.3×2.3）m |
1400m |
|
Recognition distance |
|
|
Human（1.8×0.5）m |
350m |
|
Car（2.3×2.3）m |
500m |
-
