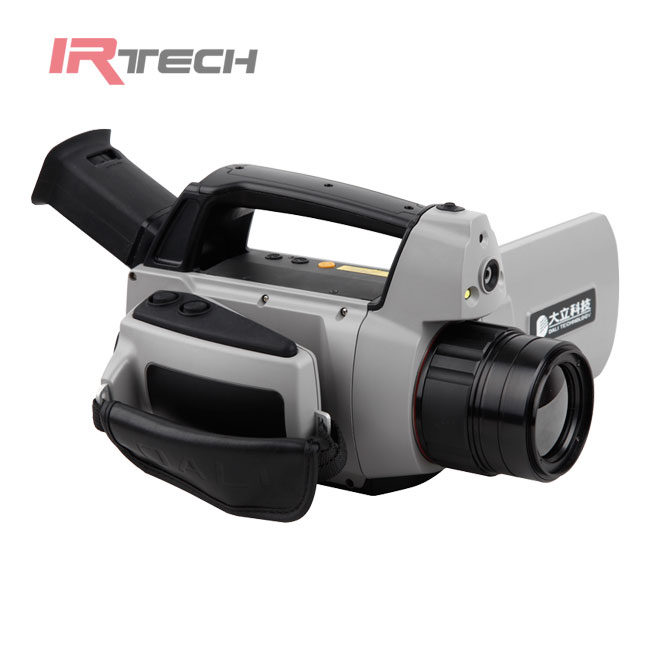

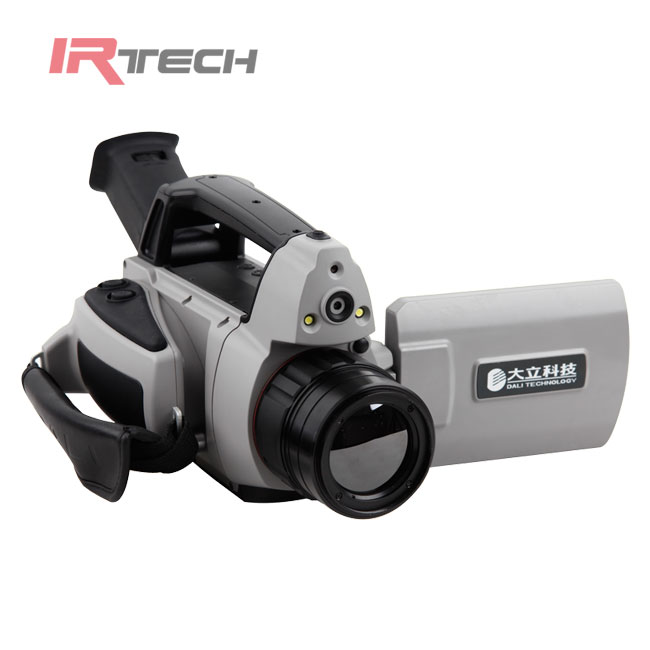

DL708 Professional Hand-held Thermal Imager
Applications:
1. Electrical and mechanical industry
Security detection/insulation failure
Loose interface detection/HVAC detective
Component detective/Repair verification
2. Building industry
Fastly scan the exterior wall of the buildings
Make accurate preventive maintenance inside of the room
|
Items |
Technical parameters |
|
|
Detector |
Type |
Uncooled FPA |
|
Resolution |
640×480 |
|
|
Image |
FOV/Minimum Focus Distance |
25°×19°/0.3m |
|
Spatial resolution |
0.65mrad |
|
|
NETD |
≤0.03℃@30℃ |
|
|
Frame rate |
50/60Hz |
|
|
Focus |
Automatically/manually/electronically |
|
|
Spectral range |
8-14um |
|
|
Visual camera built-in |
5.M pixels，CMOS， LED built-in |
|
|
Zoom |
1～8x Digital zoom |
|
|
Display |
LCD |
5” LCD touch screen |
|
View finder |
HD 0.6" OLED |
|
|
Image display |
Infrared and visual switching, PIP, fusion and superposition |
|
|
Color palette |
11 models for option（including Iron，rainbow，black white，black white reverse...） |
|
|
Image adjustment |
contrast ratio、brightness automatically/manually adjustment，auto enhancement mode |
|
|
measurement |
Temperature range |
-40℃- +650℃ |
|
accuracy |
±2℃ or ±2% |
|
|
correction |
Auto/manual |
|
|
Measurement mode |
Up to 10 movable spots，up to 5 movable areas (Highest and lowest temperature capture), Movable line temperature measurement Temperature difference measurement ,Isothermal analysis, Temperature alarm overheated alarm（voice、light） |
|
|
settings |
date/time，℃/℉/K，language，contrast/brightness，LCD backlight |
|
|
Emissivity adjustment |
Variable from 0.01to 1.0（increment: 0.01），or Correction of emissivity through pre-defined material emissivity table |
|
|
Ambient temperature adjustment |
auto，or user setting |
|
|
Atmospheric transmissivity adjustment |
auto，or user settings: object distance、relative humidity、ambient temperature |
|
|
storage |
Memory card |
8G SD card, max 32G |
|
Storage method |
Auto/Manual photography or video recording |
|
|
File format - thermal |
JPEG，with original thermal image data；MPEG4，with original thermal video data |
|
|
File format - visual |
JPEG; MPEG4 |
|
|
Voice annotation |
60seconds' voice recording，stored with images（built-in microphone） |
|
|
Text annotation |
yes，pre-definable |
|
|
Target indication |
Laser pointer |
Class 2，1mW/635nm, red |
|
Power supply |
Battery |
Li-Ion，rechargeable |
|
Operation Time |
3 hours continuous operation |
|
|
Battery charger |
Smart charger or other options（AC power adapter or DC12V in-car power） |
|
|
Energy-saving mode |
Auto sleep、auto shut down |
|
|
Environment |
Working temperature |
-15℃-+50℃ |
|
humidity |
≦95％（Non-condensing） |
|
|
Protection Grade |
IP54 |
|
|
Shock resistance |
25G，IEC68-2-29 |
|
|
Vibration resistance |
2G，IEC68-2-6 |
|
|
Dimension & weight |
Weight |
1.7Kg |
|
Dimension |
245mm×180mm×150mm |
|
|
Tripod |
1/4″-20-UNC |
|
|
Interface |
Power input |
Yes，DC 12V |
|
Memory card |
SD card |
|
|
Network |
RJ54，set IP address for original image data or MPEG-4 data stream's real time transmission |
|
|
Video output |
Yes，PAL/NTSC |
|
-
