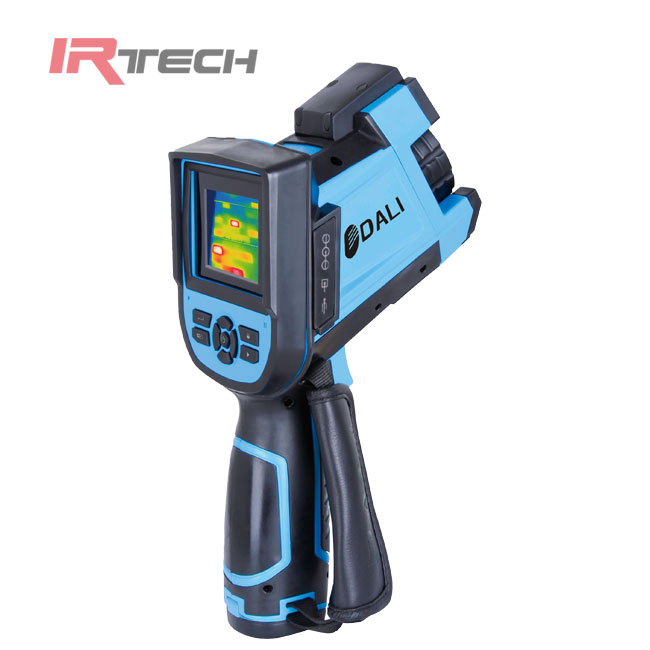

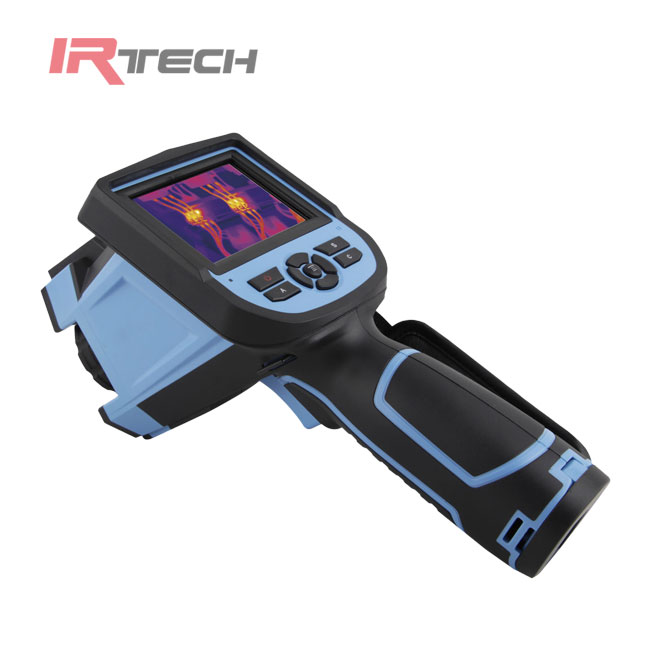

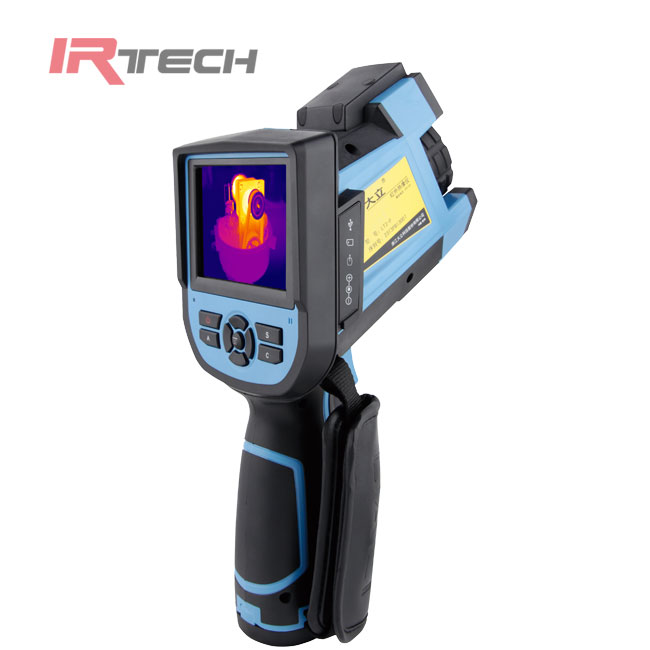

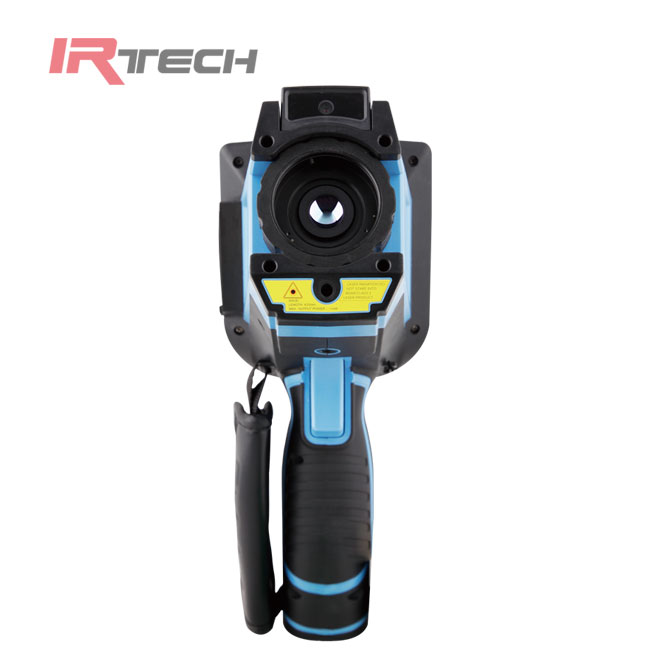

LTX Series Thermal Imager
Multi-functional temperature measurement mode, sound and light alarm, 60-second voice recording
3.5" TFT color LCD, 640480 pixels
3.2 million visible pixels, infrared, and visible light associated storage
IP54 can ensure stable use in a complex and changing environment
|
Items |
LT3 |
LT7 |
|
Detector |
||
|
Type |
Uncooled FPA micro bolometer |
|
|
Resolution |
160×120 |
384×288 |
|
Image |
||
|
FOV/Minimum focal length |
25°×19°/0.1m |
|
|
Spatial resolution |
2.72mrad |
1.36mrad |
|
NETD |
≤0.06℃@30℃ |
≤0.05℃@30℃ |
|
Frame rate |
50/60Hz |
|
|
Focal |
Manual focus |
|
|
Spectral range |
8～14um |
|
|
Visual camera built-in |
3.20M pixels，CMOS |
|
|
LCD |
3.5” TFT color LCD，640×480 |
|
|
Color palette |
11 color palettes for option（including iron，rainbow，black-white，black-white reverse...） |
|
|
Adjustment |
Auto/manual contrast、brightness adjust |
|
|
Measurement |
||
|
Range |
-20℃～+350℃， can be extended to 650℃ |
-20℃～+650℃， can be extended to 1200℃ |
|
Accuracy |
±2℃ or ±2% |
|
|
Adjustment |
Auto/manual |
|
|
Mode |
Up to 4 movable spots，3 movable area（maximum & minimum temp. capture、average temp. measure），line temp. measure，isotherm analysis，temp. difference measure， overheated alarm（voice、light） |
|
|
Settings |
Data/time，℃/℉/K，language |
|
|
Emissivity |
Variable from 0.01 to 1.0（increment: 0.01），or predefined emissivity options |
|
|
Ambient temp. adjustment |
Auto |
|
|
Atmospheric transmissivity adjustment |
Auto，or user settings: object distance，relative humidity，ambient temperature |
|
|
Storage |
||
|
Memory card |
8G Micro SD（TF）card，maximum32G |
|
|
Storage method |
Manual/auto single frame photo saving，visual、thermal relative saving |
|
|
File format - thermal |
JPEG，with original image data |
|
|
File format - visual |
JPEG |
|
|
Voice annotation |
60seconds' voice recording，stored with images（microphone built-in) |
|
|
Target indication |
||
|
Laser pointer |
Class 2，1mW/635nm, red |
|
|
Power supply |
||
|
Battery Type |
Li-on battery，rechargeable |
|
|
Operation time |
4 hours continuous operation |
|
|
Charging |
Smart charger or other options （AC power adapter or DC12V in-car power） |
|
|
Energy-saving mode |
Auto sleep、auto shut down |
|
|
Environment |
||
|
Working temp. |
-15℃～+50℃ |
|
|
Storage temp. |
-40℃～+70℃ |
|
|
Humidity |
≦95％（Non-condensing） |
|
|
Protection grade |
IP54 |
|
|
Shock resistance |
25G，IEC68-2-29 |
|
|
Vibration resistance |
2G，IEC68-2-6 |
|
|
Drop |
2m |
|
|
Dimension & weight |
||
|
Weight |
0.98Kg |
|
|
Dimension |
230mm×105mm×245mm |
|
|
Hand strap |
Both sides available |
|
|
Tripod |
1/4″-20-UNC |
|
|
Interface |
||
|
Power input |
Yes，DC 12V |
|
|
Memory card |
Micro SD（TF） card slot |
|
|
Video output |
Yes，PAL/NTSC |
|
-
