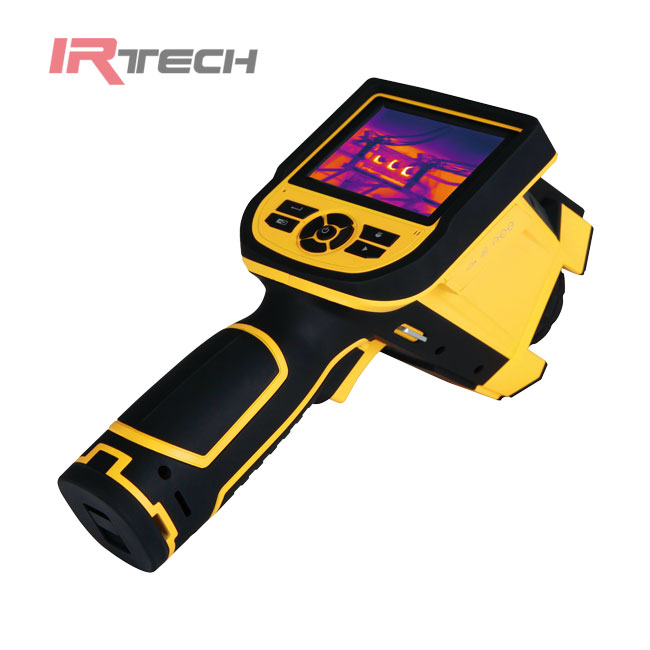

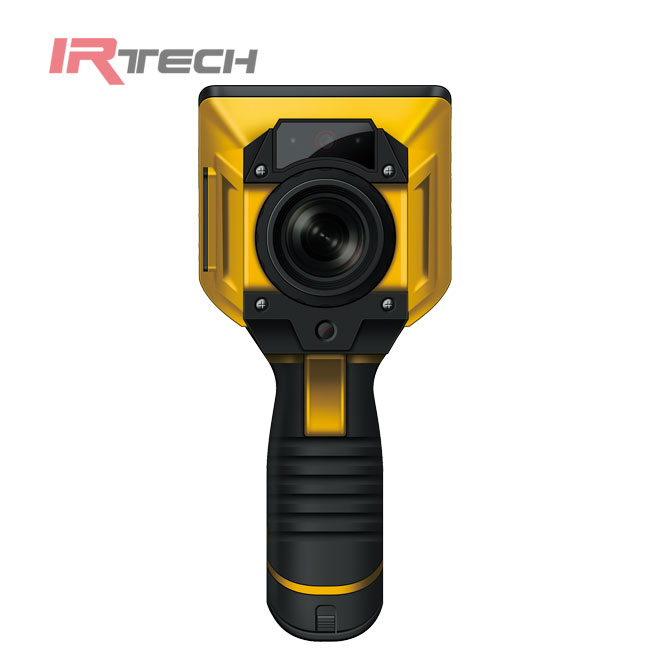

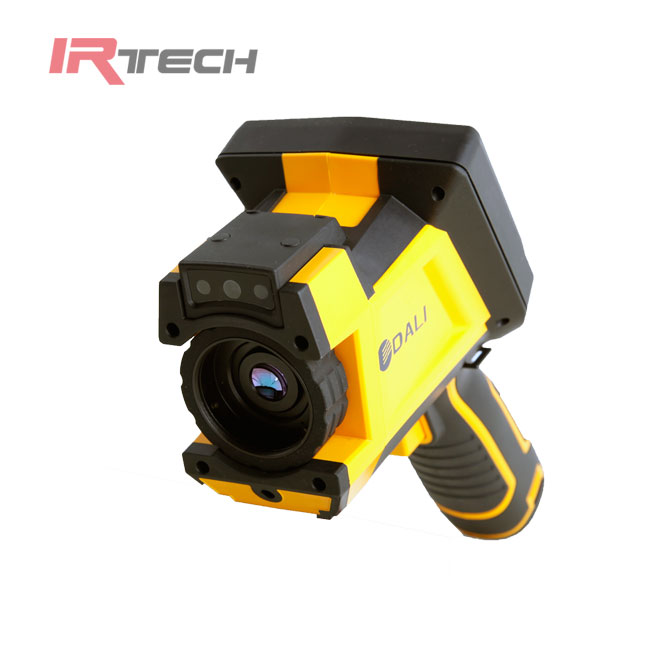

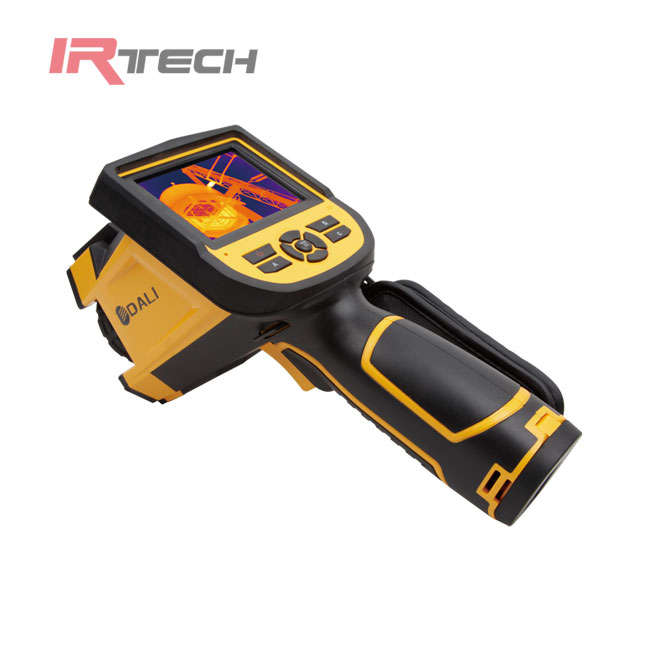

TX Series Thermal Imager

Items

T4

T8

Detector

Type

Uncooled FPA

Resolution

160×120

384x288


FOV/Mini focal length

25°×19°/0.1m

Spatial resolution

2.72mrad

1.36mrad

NETD

≤0.05℃@30℃

≤0.04℃@30℃

Frame rate

60Hz

Focal

Automatically/electronically

Spectral range

8～14um

Visual camera built-in

5 million pixels，CMOS，2 pcs LED light built-in

Display

LCD

3.5”TFT color LCD，640×480 touch screen

Display mode

Thermal/visual quick switching，thermal & visual PIP，fusion

Color palettes

11 color palettes for option

Adjustment

Automatically/manually contrast，brightness adjust，auto enhancement mode

Measurement

Range

-20℃～+350℃,

optional up to 650℃

-20℃～+650℃,

optional up to 1200℃/2000℃

Accuracy

±2℃ or ±2%

Adjustment

Auto/manual

Mode

Up to 5 movable spots，5 movable areas（maximum & minimum temp. capture、average temp. measure），2 line temp. measure， isotherm analysis， temp. difference measure， overheated alarm（voice、color）

Settings

Data/time，℃/℉/K， language，LCD background light，IP Address

Emissivity

Variable from 0.01 to 1.0（increment: 0.01），or predefined emissivity options

Ambient temp. adjustment

Auto

Atmospheric transmissivity adjustment

Auto，or user settings: object distance，relative humidity，ambient temperature

Storage

Memory

8G Micro SD（TF）card，Max. 32G

Storage method

Manual/automatic (set time or temperature trigger) storage, single frame IR storage, IR-visible correlation storage, IR-visible fusion storage;

IR recording, IR and visible correlation recording, IR and visible fusion recording

File format - thermal

JPEG， with original image data；

MPEG4 format with infrared raw measurement data recording

File format - visual

JPEG format, MPEG4 format with fusion

Voice annotation

60seconds' voice recording，stored with images（microphone built-in)

Text Comments

Support

Power supply

Battery type

Li-on battery，rechargeable

Operation time

4 hours continuous operation

Charging

Smart charger or other options （AC power adapter or DC12V in-car power）

Energy-saving mode

Auto sleep，auto shut down

Environment

Working temp.

-15℃～+50℃

Storage temp.

-40℃～+70℃

Humidity

≦95％（Non-condensing）

Protection grade

IP54

Shock resistance

25G，IEC68-2-29

Vibration resistance

2G，IEC68-2-6

Drop

2m

Dimension & weight

Weight

0.98Kg

Dimension

230mm×105mm×245mm

Hand strap

Both sides available

Tripod

1/4″-20-UNC

Interface

Power input

Yes，DC 12V

Memory

Micro SD（TF） card slot

Network

Mini-USB，set IP address to transport image in real time

Wifi

Wifi built-in， analysis thermal image in real time by APP in Mobile system

Video output

Yes，PAL/NTSC

Audio/data output

Blue-tooth
