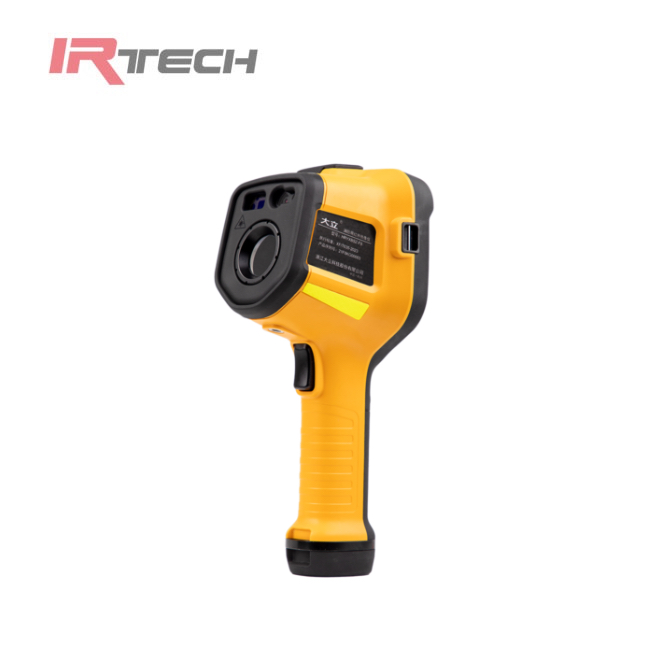

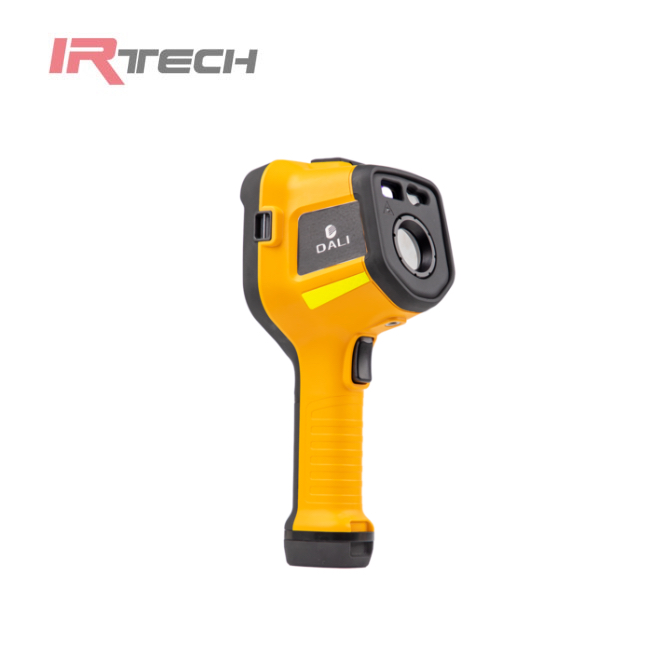

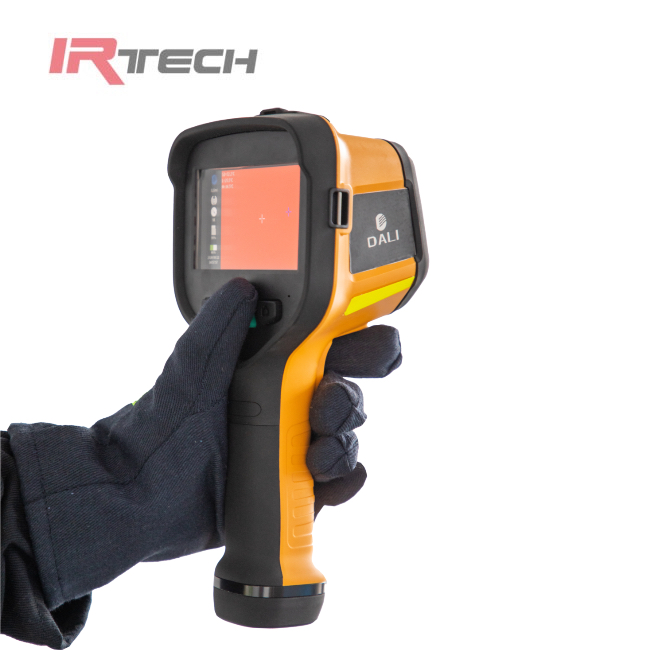

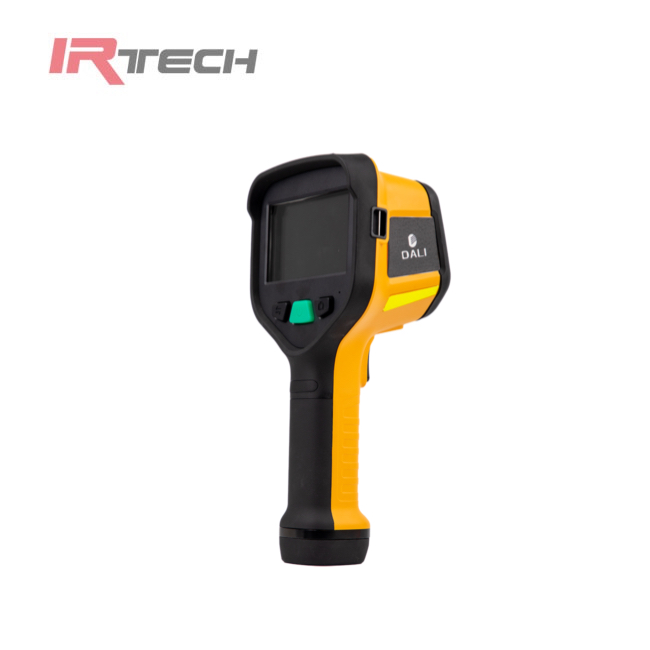

F8 series Fire Fighting Thermal Imager

Items

HRYXBSZ-384-F8

HRYXBSZ-640-F8

Detector

Types

Uncooled FPA

Resolution

384×288

640×512

Super pixel

768×576

1280×960

NETD

≤0.03℃@30℃（30mk）

Frame rate

60Hz

Lens

FOV

53°×40°

50°×36°

Foal length

0.5m～∞

Display

Monitor

4.3-inch, high-temperature resistant color thin-film transistor LCD display screen, resolution 800 x 480

Palette

Firefighting, fire, search and rescue, building, thermal inspection, forest, water area, and night vision

Image adjustment

Automatic / Manual


Spatial resolution

2.4mrad

1.3mrad

Display mode

IR, visible light, P-I-P, dual-spectrum and dynamic imaging

Digital zoom

2x, 4x, 8x

Storage

Memory

Built-in 256G memory

Video recording

Yes, MP4 format

Image Storage

Yes, JPEG format with temperature data

Visible Image Pixels

5M

Visible Image resolution

2592×1944

Temperature measurement range

Range

-40℃～+2000℃, automatic shifting

Accuracy

± 2 ℃ or ± 2% measurement value, whichever is greater

Mode

Center point / Full screen maximum temperature / Minimum temperature

Correction

Auto / Manual zeroing

Power system

Type

Rechargeable lithium battery

Working time

Continuous working time ≥ 6 hours

 (Actual working time depends on the environment.)

Charging Time

80% full in 2.5 hours

Management

Auto Power Off / Auto Hibernate

Saving Mode

Yes

Physical

Dimension

130mm×113mm×275mm

Weight

≤1.0Kg（including battery）

Casing

With fluorescent strip

Other configurations

Compass

Yes

Laser ranging

Yes

Positioning

Yes

LED fill light

Yes

4G/5G

Yes （optional）

Bluetooth

Yes

WIFI

Dual-mode intelligent wireless connection hub, can be connected to cell phone APP, and realize mesh networking.

Interface

SIM card slot, Type-C

Other function

Equipment self-test

Support device overheating alarm, fault alarm, and power alarm

AI+infrared recognition

Yes

Customized keys

Customized trigger

Software

Mobile APP

Through WIFI or hotspot connection, realize real-time screen transmission, remote control, etc.

Cloud platform

( Optional )

Through 4G/5G connection, the screen can be remotely detected and remotely controlled

Report Analysis Software

Can analyze and process the captured pictures by computer.

Environmental

Working Temperature

-20℃～+50℃ working longtime；+80℃ working about 30mins；+120℃ working about 15mins；+260℃ working about 5mins.

Storage Temperature

-40℃～+70℃

Damp heat

≤95% non-condensing

Protection class

IP67

Vibration

Qualified

Static electricity

Qualified

Electromagnetic

Qualified

Salt Spray

Qualified

Shock

Qualified

Drop

2m

Certifications

Fire-fighting

Conforms to the XF/T635-2023 standard of thermal imaging cameras

for firefighting

Explosion-proof

Designed in accordance with intrinsically safe explosion-proof standards
