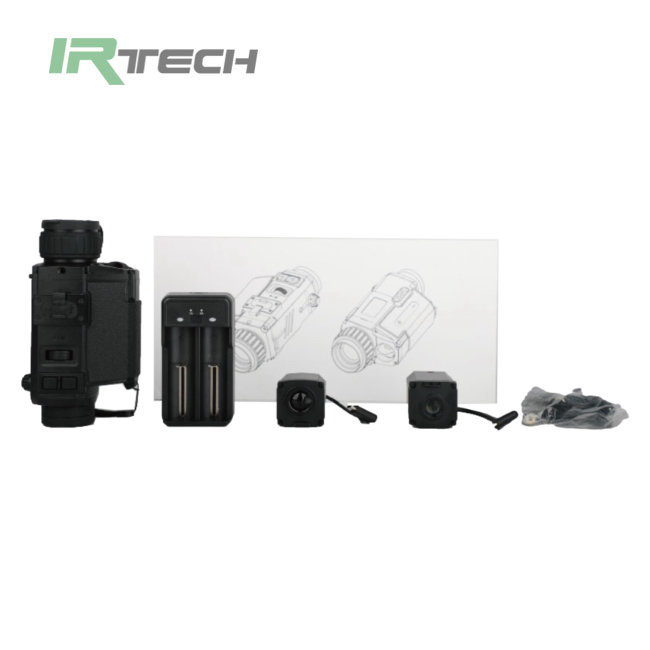

MS3 Series Multi-Function Tactical Monocular

The MS3 Series Tactical Multifunctional Monocular equips military and law enforcement personnel with exceptional night combat capabilities through its 20mK high-sensitivity infrared detector. Integrated with a 1000m laser rangefinder module, 2MP low-light camera module, switchable dual optical fusion mode, and over 8 pseudo-color imaging modes, this system ensures comprehensive mission control and delivers unparalleled tactical versatility.

Item

MS325

MS335

MS335P

Sensor

Detector Type

VOx

Pixel Array

384×288

640×512

Pixel Pitch

12μm

NETD

≤20 mK

Optical

Focal length

25mm/F1.0

35mm/F1.0

35mm/F1.0

FOV(±5%)

10.6°*7.9°

7.5°*5.7°

12.6°*10.1°

Frame rate

50HZ

Focusing method

Manual

Thermal imaging Operation

Display

0.49-inch, color OLED, resolution 1440*1080

Exit Pupil Distance

25mm

Basic Magnification

2.33x

3.26x

1.91x

Diopter

-5D ~ +5D

Brightness/Contrast

Adjustable

Image Mode

White heat, black heat, green heat, iron red, red heat, forest

Digital zoom

X1.0 ~ 8.0

P-I-P

Yes

Hot Spot Tracking

Yes

Uniformity Calibration

Manual/Auto Calibration

 WI-FI

Yes

Electronic compass

Yes

Crosshair

Yes and optional available

Bad Spot Repair

Yes

Laser Indication

Yes

Low-Illumination  Visible Camera

Resolution

2 megapixels

FOV

18.9°*10.7°

Minimum Illumination

0.0005lux

Laser ranging module

Measuring range

Maximum length 1000 m, minimum 10 m. Accuracy: ±1 m

Memory

Built-in

32G

Storage type

Video recording and photo taking

Power supply

Battery type

Standard 18650 lithium battery (Rechargeable and removable )

Working time

7.5h

7.5h

7h

Electromagnetic

Complies with CE requirements

Humidity

0~95%

Working Temperature

-30+55-22°F to 131°F

Storage Temperature

-40+70

Physical

Housing Color

Black

Interface

1/4 tripod threaded connector for adapter

Protection class

IP67

Dimension

167*84*62mm

Weight

≤420g

Interfaces

Type-C (LLVC)

Extended low-light micro-optical module

Type-C (power)

External power supply, data transmission, external real-time video, and extended laser ranging module

Detection Distance

Human1.8×0.5m

1100m

1600m

1600m

Car 2.3×2.3m

1600m

2200m

2200m

Recognition Distance

Human1.8×0.5m

550m

800m

800m

Car2.3×2.3m

800m

1100m

1100m
