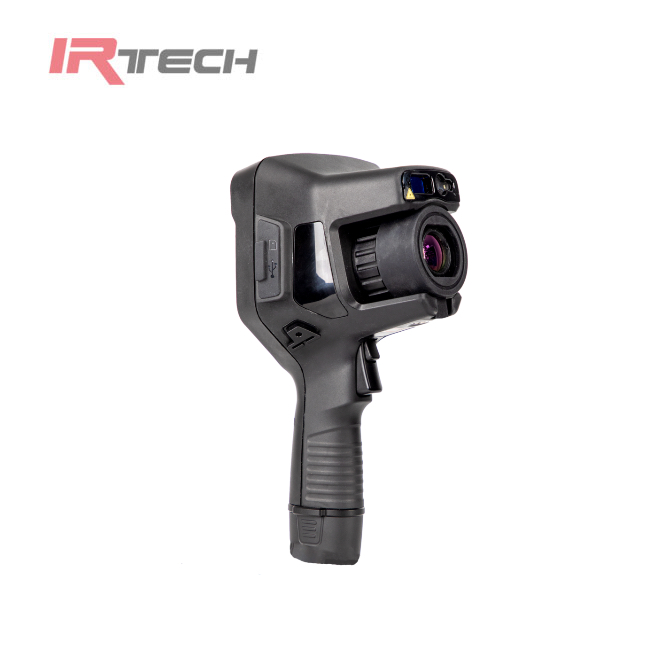

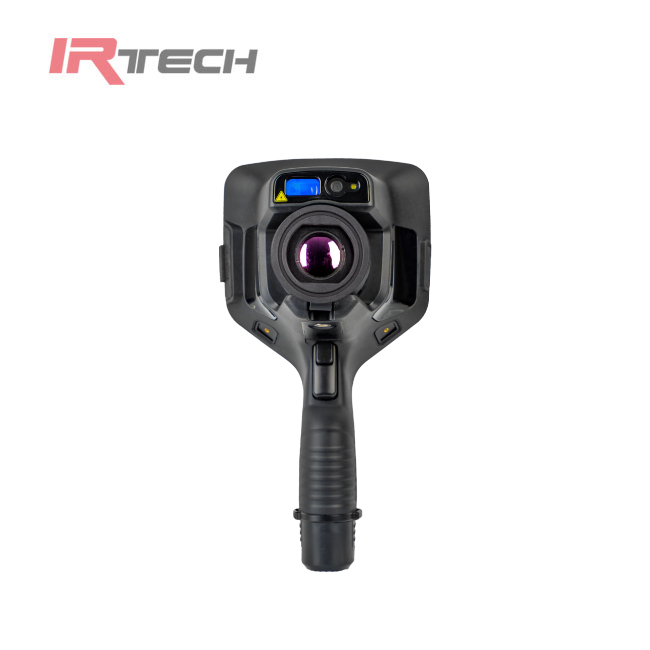

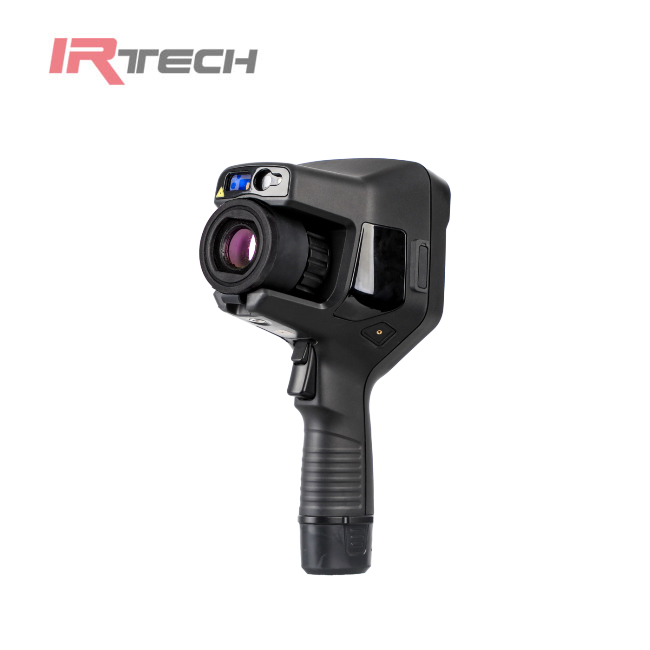

T12-M Thermal Imager

Items

T12-M

Detector

Type

Uncooled  FPA Micro bolometer

Resolution

640×512

Spectrum

7～14um

NETD

≤0.03℃@30℃

Frame Rate

60Hz

Lens

Lens

Automatic Recognition

Focus

Manual/Electric/Auto/Laser/Touch Screen/Continuous

FOV

28.7° * 23.1°

Focal length

0.2m~∞

Image Display

Display

5.0" TFT LCD, Color with Capacitive Touch Screen

Resolution

1280×720

Backlight

High brightness sunlight screen

Palette

16 colors optional

Image Adjustment

Auto/Manual

Image Performance

Spatial Resolution

0.8mrad

Ultra Pixel

1280×1024

Display Mode

Infrared, visible light, picture-in-picture, dual-spectrum fusion image (DSIE)

Digital zoom

1~15x

Visible light camera

13 megapixels

Positioning point

Laser positioning points are displayed on the image

Image Storage

Memory

TF card

Video Recording

Yes, it  is stored in video format and can be set for scheduled storage. It supports infrared, visible light, and fusion modes

Image Storage

Yes, infrared image JPEG format, with infrared temperature data; visible light, fusion JPEG format storage

Voice notes

60 seconds of voice recording, stored with the image, text annotation optional

Measurement

Temperature range

-20℃～+650℃, expandable from 1200℃ to 2000

Temperature accuracy

±2℃ or ±2% of measured value

Measurement Mode

Real-time 15 movable points (the hottest and coldest point independently), 15 movable areas (the highest temperature, the lowest temperature capture, average temperature measurement), 8 lines of temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color)

Measurement Correction

Automatic (short time, long time, customized) / manual

Atmospheric Window Correction

Correction according to IR window transmittance

Atmospheric transmittance correction

Automatic, based on input target distance, relative humidity, ambient temperature

Background Temperature Correction

Can be automatically corrected according to the input temperature

Emissivity Correction

Adjustable emissivity from 0.01 to 1.0 (in increments of 0.01), or emissivity correction via predefined substance emissivity table

Power Systems

Battery type

Rechargeable lithium battery, replaceable

Battery working time

5 hours

Battery charging time

Fast charging function (external charger), can be charged randomly

Power saving mode

Automatic sleep, automatic shutdown

Physical Characteristics

Dimensions

W146 × D166 × H282mm

Weight

≤ 1.1kg (including battery and standard mirror)

handrail

Yes, both sides can be installed

Tripod

1/4 "-20-UNC

Interface

Storage card slot

TF card holder

Data interface

Mini USB Type C, image/video transfer

Video interface

Yes

Power interface

Mini USB Type C

Others

Laser

Laser rangefinder

Fill light

Yes

Microphone

Yes

Buzzer

Yes

WiFi

Yes

Bluetooth

Yes

GPS

Yes

Electronic compass

Yes

Other settings

Date/time, temperature unit ℃/℉/K, language, LCD backlight, IP address

Environment

Working temp.

-15℃～+50℃

Storage temp.

-40℃～+70℃

Humidity

≤95% non condensing

Protection grade

IP54

Vibration

2g，GB/T2423.10（IEC60068-2-6）

Impact

30g，GB/T2423.5（IEC60068-2-27）

Falling

2m，GB/T2423.8（IEC60068-2-32）
