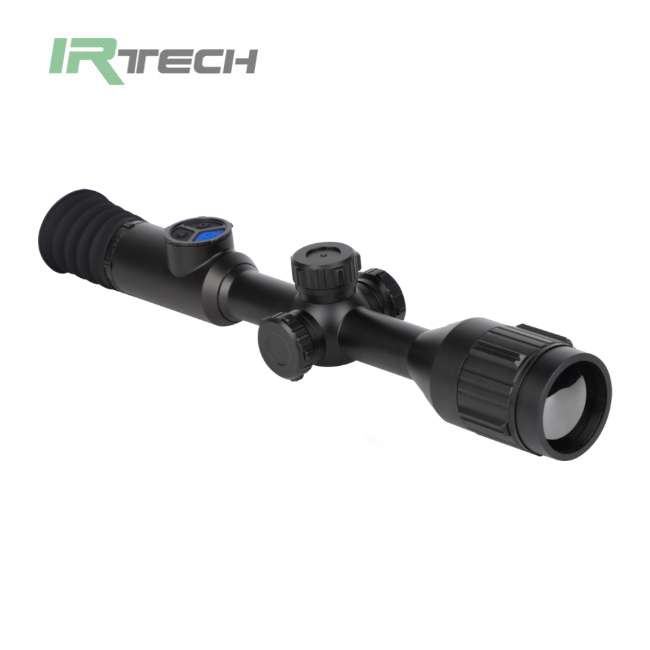

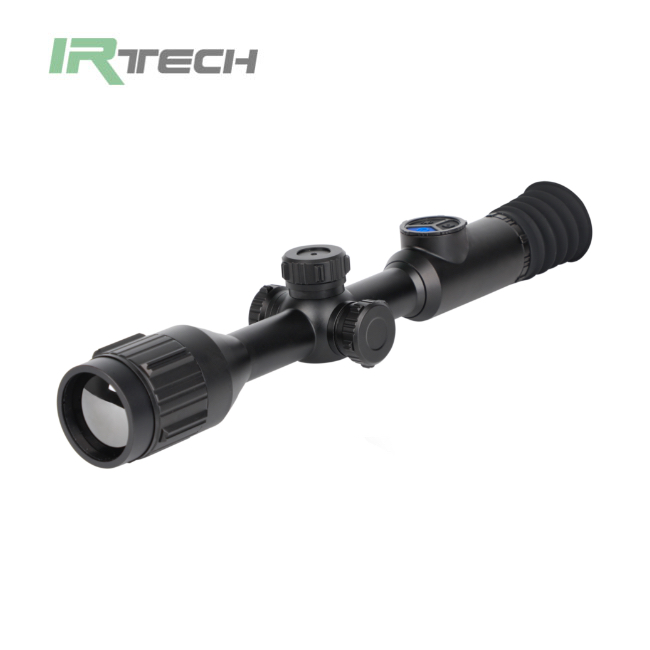

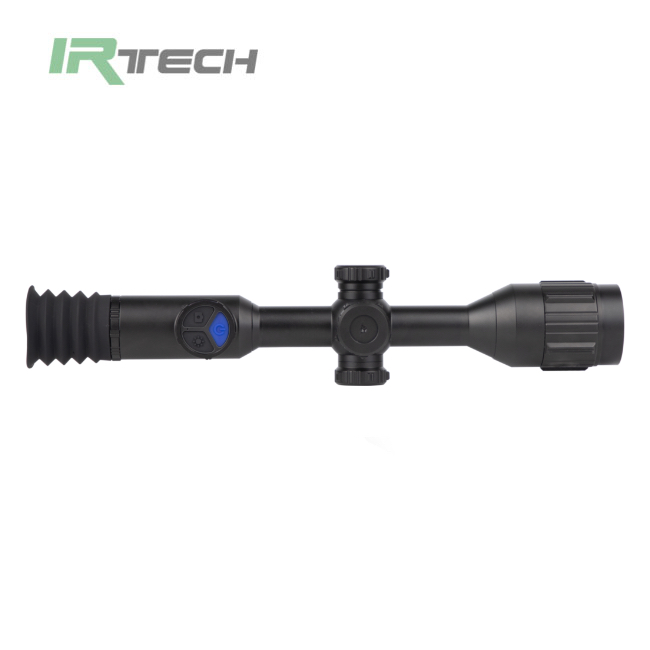

RS7 Series Thermal Scope
◆Built-in photo and video recording functions and also support WIFI transmission
◆0.49 inch OLED 1440*1080 resolution display
◆Alloy housing, protection IP67, anti harsh environment
◆Shock Resistance Up to 800g/ms, and Impact resistance up to 6000J
◆Standard 30 mm tube and Universal Mount Ring
|
Item |
RS735-384 |
RS750-384 |
RS735-640 |
RS750-640 |
|
Sensor |
||||
|
Type |
Uncooled VOx FPA Micro bolometer |
|||
|
Pixel Array |
384×288 |
384×288 |
640×512 |
640×512 |
|
Pixel Pitch |
12μm |
|||
|
NETD |
≤35 mK (25 °C, F#=1.0) |
|||
|
Image |
||||
|
Focal Length |
35mm |
50mm |
35mm |
50mm |
|
FOV(±5%) |
7.5°*5.7° |
5.3°*4.0° |
12.6°*10.1° |
8.8°*7.0° |
|
Min Focus |
2m |
5m |
2m |
5m |
|
Lens Aperture |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Frame Rate |
50Hz |
|||
|
Focus method |
Manual |
|||
|
Display |
||||
|
Display |
0.49 inch Color OLED 1440*1080 Resolution |
|||
|
Exit Pupil Diameter |
6mm |
|||
|
Exit Pupil distance |
65mm |
|||
|
Eyepieces Magnification |
11.2X |
|||
|
Basic Magnification |
X3.25 |
X4.65 |
X1.91 |
X2.72 |
|
Diopter |
Adjustable，-5D~+5D |
|||
|
Thermal imaging Operation |
||||
|
Brightness/Contrast |
Adjustable |
|||
|
NUC |
Auto/Manual |
|||
|
Polarity |
Black/White/Green/Iron/Red Hot |
|||
|
E-Zoom |
X1.0~8.0 |
|||
|
Cross Reticle |
10 Types |
|||
|
Hot Spot track |
Support |
|||
|
PIP |
Support |
|||
|
Bad Pixel correction |
Support |
|||
|
WIFI |
Support . AP/WLAN |
|||
|
Memory |
||||
|
Capacity |
32G |
|||
|
Audio Record |
Support |
|||
|
Impact Video Recording |
Support |
|||
|
Recording Type |
Photo / Video |
|||
|
Power Supply |
||||
|
Battery Type |
Two Power supply Support, Built-in type plus external Battery (CR123*1 or RCR23) |
|||
|
Power working Status |
Support |
|||
|
Working Time |
≥15 Hours |
|||
|
Environment |
||||
|
Shock Resistance |
800g/ms |
|||
|
Vibration Resistance |
2g，GB/T2423.10（IEC60068-2-6） |
|||
|
EMC |
CE Complied |
|||
|
Humidity |
0~95% |
|||
|
Working Temperature |
-30℃~+55℃ (-22 °F to 131°F) |
|||
|
Physical Characteristics |
||||
|
Housing Color |
Black |
|||
|
Mounting Method |
30mm Tube， Universal Mounting ring |
|||
|
Encapsulation |
IP67 |
|||
|
Dimension |
351×84×76.2mm |
368.2×84×77.2mm |
351×84×76.2mm |
368.2×84×77.2mm |
|
Weight |
≤950g |
≤1100g |
≤950g |
≤1100g |
|
Interface |
||||
|
Power Supply |
Type-C interface (Charging ,Data Transmission, External Video output ) |
|||
|
Detection distance |
||||
|
People(1.8×0.5)m |
1600m |
2300m |
1600m |
2300m |
|
Ca(2.3×2.3)m |
2200m |
3200m |
2200m |
3200m |
|
Recognition Distance |
||||
|
People (1.8×0.5)m |
800m |
1150m |
800m |
1150m |
|
Car(2.3×2.3)m |
1100m |
1600m |
1100m |
1600m |
-
